Installation [09/2015 - ]: Procedure

  1. INSTALL V-RIBBED BELT

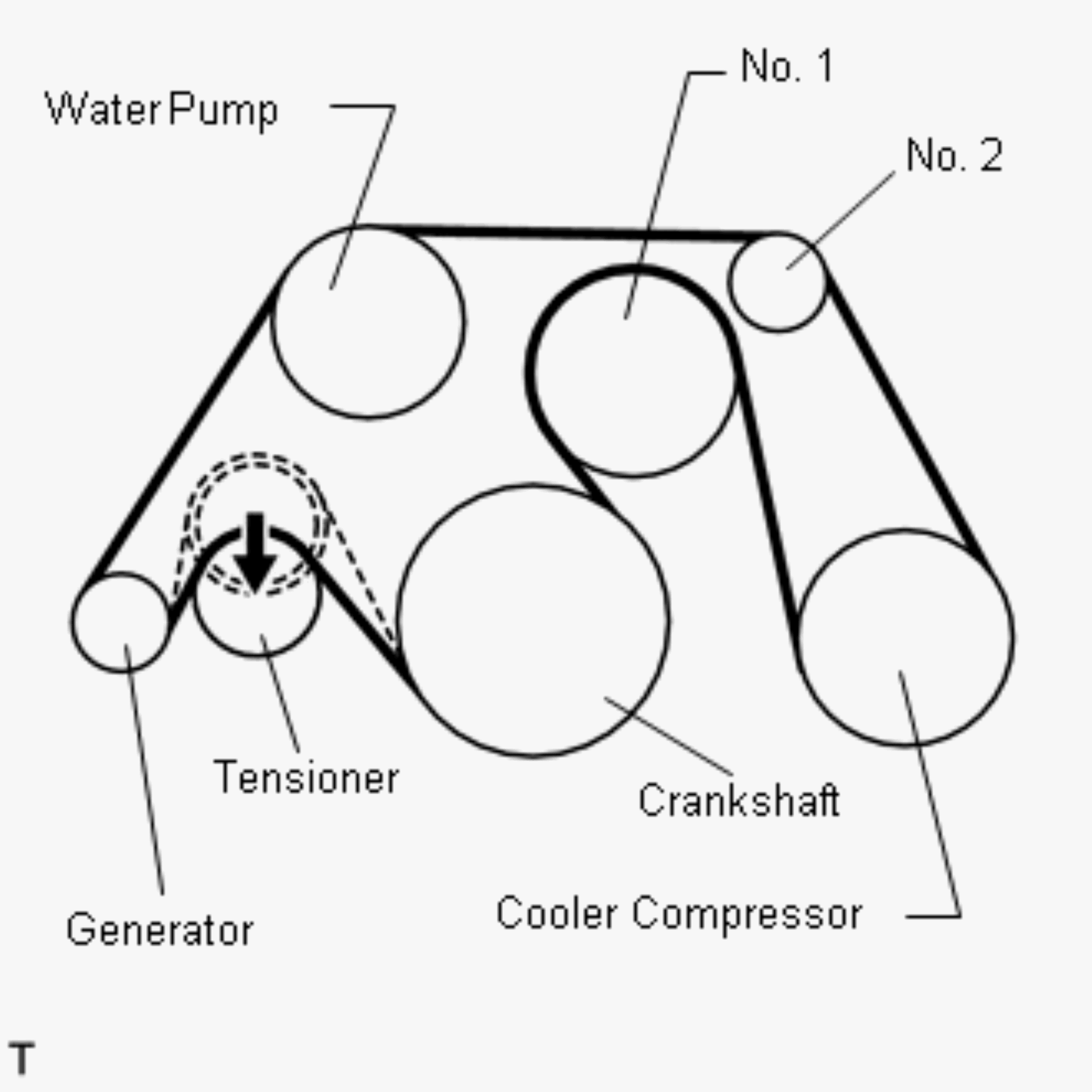

    1. Install the V-ribbed belt as shown in the illustration.
      GTY616868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Check that the V-ribbed belt is properly set to each pulley.

      1. Rotate the tensioner pulley counterclockwise, and then remove the fix bar.
  2. INSTALL INTAKE AIR CONNECTOR PIPE

    Refer to PROCEDURE - Step 13

  3. INSTALL NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 3

  4. INSTALL AIR CLEANER INLET COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 7

  5. INSTALL V-BANK COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 8
