Removal [09/2015 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 3

  4. REMOVE ENGINE ROOM SIDE COVER RH

    Refer to PROCEDURE - Step 7

  5. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH (for AWD)

    Refer to PROCEDURE - Step 7

  6. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH (for AWD)

    Refer to PROCEDURE - Step 8

  7. REMOVE NO. 1 ENGINE UNDER COVER

    See step  6

  8. DRAIN ENGINE COOLANT

    See step  7

  9. REMOVE RADIATOR RESERVOIR ASSEMBLY

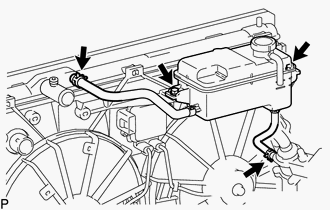

    1. Disconnect the 2 reservoir hoses.
      GTY419478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and radiator reservoir assembly.
  10. DISCONNECT NO. 2 RADIATOR HOSE
    1. Disconnect the No. 2 radiator hose from the water inlet sub-assembly.
  11. REMOVE WATER INLET SUB-ASSEMBLY WITH THERMOSTAT

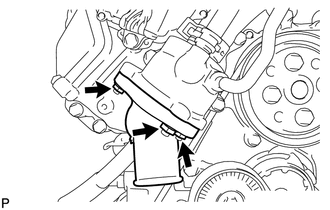

    1. Remove the 3 nuts, the water inlet with thermostat and the gasket.
      GTY288054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
