Removal [09/2015 - ]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 25

  2. REMOVE RAIN SENSOR COVER (w/o Lane Keeping Assist System)
    GTY259323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Pull the stopper in the direction shown in the illustration.
    2. Detach the 2 claws and remove the rain sensor cover.
  3. REMOVE RAIN SENSOR COVER (w/ Lane Keeping Assist System)
    NOTE:

    When removing and installing the rain sensor cover, do not apply force to the object recognition camera areas labeled "X".

    GTY674911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Do not touch of the camera lens (built into the inner rear view mirror assembly) with a bare hand.
    • Do not allow anything to adhere to the camera lens (built into the inner rear view mirror assembly).
    • Do not apply strong impact to the inner rear view mirror assembly.
    • Do not allow any liquids to get on the inner rear view mirror assembly.

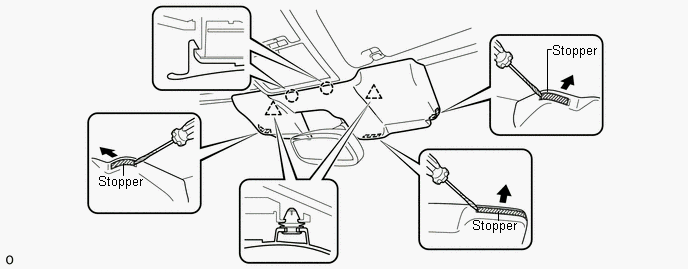

    1. Pull the stopper in the direction shown in the illustration.
      GTY406303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. While being careful not to apply force to the camera area, detach the 2 clips and 2 claws and remove the rain sensor cover.
  4. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/o Automatic High Beam System, Adaptive High Beam System)
    1. Disconnect the connector.
    2. Using a T20 "TORX" socket wrench, remove the screw and inner rear view mirror.
      GTY668350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/ Automatic High Beam System, Adaptive High Beam System)
    NOTE:
    • Do not touch of the camera lens (built into the inner rear view mirror assembly) with a bare hand.
    • Do not allow anything to adhere to the camera lens (built into the inner rear view mirror assembly).
    • Do not apply strong impacts to the inner rear view mirror assembly.
    • Do not allow any liquids to get on the inner rear view mirror assembly.
    1. Disconnect the connector.
    2. Using a T20 "TORX" socket wrench, remove the screw and inner rear view mirror.
      GTY668518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
