Removal [09/2015 - ]: Procedure

  1. PRECAUTION
    WARNING:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).

    NOTE:
    • When replacing the multi-media module receiver assembly or DCM (telematics transceiver), perform the vehicle contract setting (Refer to DCM ACTIVATION [09/2015 - ] ).
    • The safety connect device uses the DCM (telematics transceiver) to provide access to the network service.
    • The DCM (telematics transceiver) has a DCM ID (described on the label attached to the DCM (telematics transceiver)).
  2. REMOVE COWL TOP VENTILATOR LOUVER RH

    Refer to PROCEDURE - Step 2

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).

  4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    Refer to PROCEDURE - Step 2

  5. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 16

  6. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUBASSEMBLY

    Refer to PROCEDURE - Step 18

  7. REMOVE LOWER INSTRUMENT PANEL

    Refer to PROCEDURE - Step 7

  8. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 8

  9. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

    Refer to PROCEDURE - Step 21

  10. REMOVE DCM (TELEMATICS TRANSCEIVER)

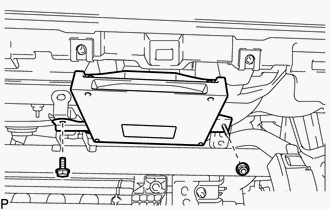

    1. Remove the bolt and nut.
      GTY399684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector and remove the DCM (telematics transceiver).
  11. REMOVE NO. 1 TELEPHONE BRACKET
    1. Remove the bolt and No. 1 telephone bracket.
      GTY416851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 2 TELEPHONE BRACKET
    1. Remove the bolt and No. 2 telephone bracket.
      GTY399686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
