Removal [09/2015 - ]: Procedure

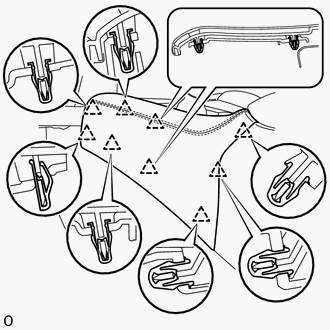

  1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
    GTY418505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Pull the front part of the instrument panel finish panel end LH to detach the 6 clips.
    2. Pull the instrument panel finish panel end LH to detach 3 clips and remove the instrument panel finish panel end LH.
  2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

    HINT:

    Use the same procedure described for the LH side.

  3. REMOVE SHIFT LEVER KNOB SUBASSEMBLY
    1. Lower the shift lever boot and disconnect it from the shift lever knob sub-assembly.
      GTY407527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Twist the shift lever knob sub-assembly in the direction indicated by the arrow and remove it.
      GTY407471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 3 BOX PANEL
    GTY418493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 claws and remove the No. 3 box panel.

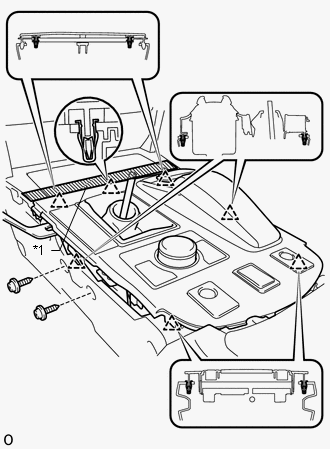

  5. REMOVE UPPER REAR CONSOLE PANEL SUBASSEMBLY
    GTY395616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply protective tape as shown in the illustration.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Move the shift lever to N.
    3. Remove the 2 screws.
    4. Detach the 6 clips and remove the upper rear console panel sub-assembly.
    5. Disconnect each connector and each wire harness clamp.
  6. REMOVE UPPER INSTRUMENT CLUSTER FINISH PANEL

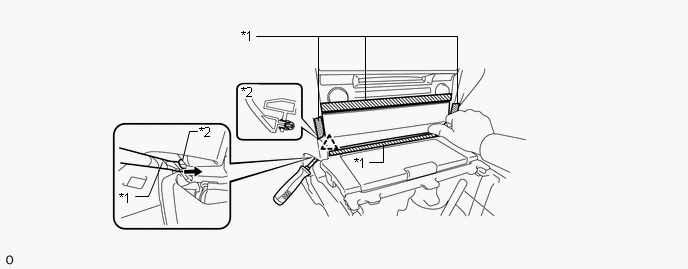

    1. Apply protective tape as shown in the illustration.
    2. Hold the opposite end with one hand as shown in the illustration so that the clip can be firmly pushed.
    3. Insert a screwdriver at the location shown in the illustration, and then push the lower clip on the backside of the upper instrument cluster finish panel towards the rear of the vehicle to detach it.
      NOTE:

      At this time, all the clips may become detached and the upper instrument cluster finish panel may suddenly come off. Therefore, slowly push on the clip to detach it.

      HINT:

      • Tape the screwdriver tip before use.
      • The upper clip of the upper instrument cluster finish panel may become detached at the same time.
      GTY620362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape *2 Lower Clip
      Rear of the Vehicle - -

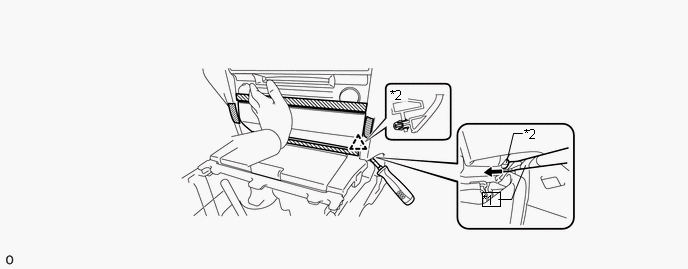

    4. Insert a screwdriver at the location shown in the illustration, and then push the lower clip on the backside of the upper instrument cluster finish panel towards the rear of the vehicle to detach it.
      NOTE:
      • Slowly push on the clip to detach it.
      • At this time, all the clips may become detached and the upper instrument cluster finish panel may suddenly come off. Therefore, place one hand on the upper instrument cluster finish panel as shown in the illustration.

      HINT:

      • Tape the screwdriver tip before use.
      • The upper clip of the upper instrument cluster finish panel may become detached at the same time.
      GTY629460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape *2 Lower Clip
      Rear of the Vehicle - -

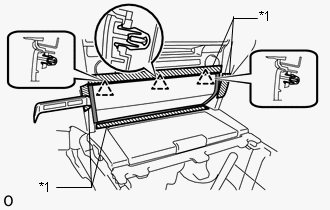

    5. Insert moulding remover A between the upper instrument cluster finish panel and lower No. 1 instrument panel finish panel, and between the upper instrument cluster finish panel and lower No. 2 instrument panel finish panel to detach the 3 upper clips and remove the upper instrument cluster finish panel.
      NOTE:

      If pressure is applied to the edge of the upper instrument cluster finish panel using moulding remover A, the surface may be damaged. Therefore, insert moulding remover A deep past the edge of the upper instrument cluster finish panel to detach the clips.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
      Upper Instrument Cluster Finish Panel Edge

      HINT:

      If any of the upper clips have become detached during the previous procedure, detach the remaining clips to remove the upper instrument cluster finish panel.

      GTY634846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE UPPER CONSOLE PANEL SUBASSEMBLY
    1. Disconnect the connector.
    2. Detach the 6 clips and remove the upper console panel sub-assembly.
      GTY403211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

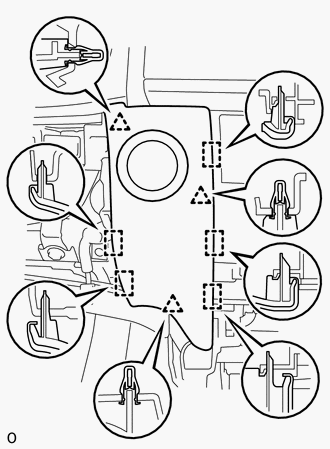

  8. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
    GTY407468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 clips and 5 guides and remove the lower No. 1 instrument panel finish panel.
    2. Disconnect the connector.

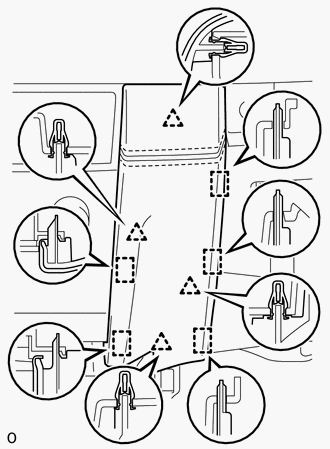

  9. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
    GTY407469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 clips and 5 guides and remove the lower No. 2 instrument panel finish panel.
  10. REMOVE REAR CONSOLE END PANEL SUBASSEMBLY
    GTY288870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using moulding remover B, detach the 5 clips and 2 claws and remove the rear console end panel sub-assembly.
    2. Disconnect the connector.
  11. REMOVE LOWER CONSOLE COVER
    1. Remove the lower console cover.

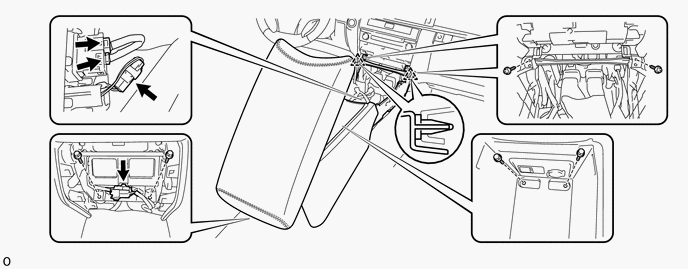

  12. REMOVE CONSOLE BOX ASSEMBLY
    1. Disconnect the 4 connectors and detach the wire harness clamp.
    2. Remove the 4 bolts and 2 screws.
    3. Detach the 2 clips and remove the console box assembly.
      GTY407470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
