Removal [09/2015 - ]: Procedure

1. Detach the 4 clips, claw and clamp and remove the No. 1 speaker hole cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

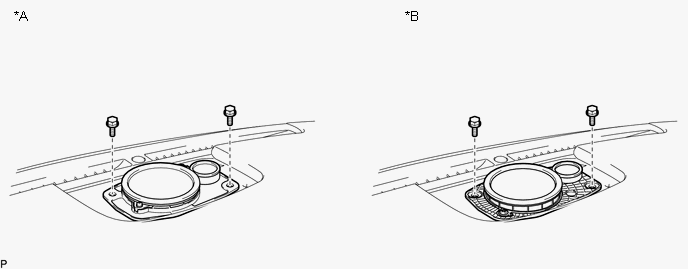

1. Remove the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A

   for Standard

   *B

   for 19 Speaker

2. Disconnect the connector and remove the front No. 3 speaker assembly.

Refer to PROCEDURE - Step 11

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

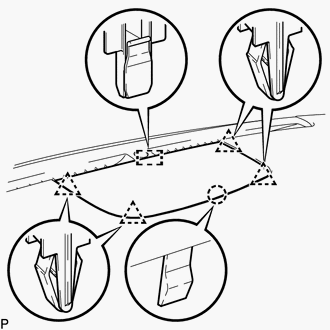

1. Detach the 2 clips and 7 claws.
2. Remove the No. 1 instrument panel speaker panel sub-assembly.

1. Remove the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *A

   for Standard

   *B

   for 19 Speaker

2. Disconnect the connector and remove the front No. 2 speaker assembly.
