Removal [09/2015 - ]: Procedure
- REMOVE COWL TOP VENTILATOR LOUVER RH
Refer to PROCEDURE - Step 1
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work (Refer to PRECAUTION [09/2015 - ] ).
- DISABLE AUTOAWAY/RETURN FUNCTION
- Disable the autoaway/return function by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [09/2015 - ]
).NOTE:
Record the current customize parameter setting (whether the autoaway/return function is enabled or disabled) in order to restore the current setting after finishing the operation.
HINT:
Performing the above operation causes the autoaway/return function to be disabled when the engine switch is turned off.
- Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully retract and tilt up the steering column assembly.
- Turn the engine switch off.
- Disable the autoaway/return function by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [09/2015 - ]
).
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- Disconnect the cable from the negative (-) battery terminal.WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - ] ).
- Disconnect the cable from the negative (-) battery terminal.
- REMOVE INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 6
- REMOVE INSTRUMENT PANEL ORNAMENT
Refer to PROCEDURE - Step 7
- REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 8
- REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
- REMOVE STEERING COLUMN COVER (w/o Driver Monitor Camera)
Refer to PROCEDURE - Step 6
- REMOVE STEERING COLUMN COVER (w/ Driver Monitor Camera)
Refer to PROCEDURE - Step 7

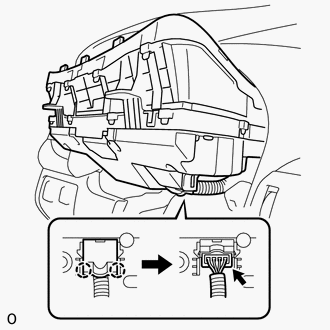

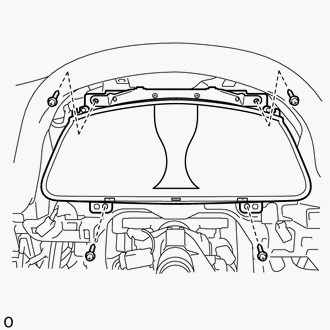

- REMOVE COMBINATION METER ASSEMBLY
