Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN ENGINE OIL
Refer to PROCEDURE - Step 1 [10/2017 - 11/2021] , or refer to PROCEDURE - Step 1 [11/2021 - ]
REMOVE FAN SHROUD
Refer to REMOVAL [10/2017 - ]
REMOVE V-RIBBED BELT
See step 4
REMOVE OIL FILTER BRACKET SUB-ASSEMBLY
Refer to PROCEDURE - Step 27

REMOVE CRANKSHAFT PULLEY

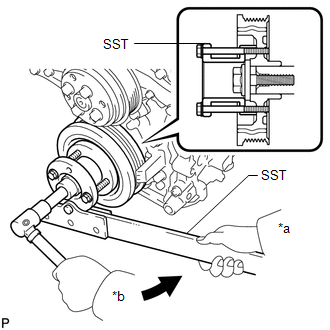

Using SST, loosen the crankshaft pulley bolt.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Hold
*b	Turn

SST: 09213-70011
1. 09213-70020
SST: 09330-00021

Tighten the crankshaft pulley bolt to 2 or 3 threads of the crankshaft.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Hold
*b	Turn

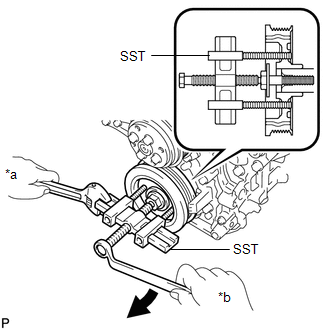

Using SST, remove the crankshaft pulley bolt and crankshaft pulley.
- SST: 09950-50013
  1. 09951-05010
  2. 09952-05010
  3. 09953-05020
  4. 09954-05021
HINT:

Apply grease to the threads and tip of SST (center bolt) prior to use.

REMOVE CRANKSHAFT TIMING GEAR KEY

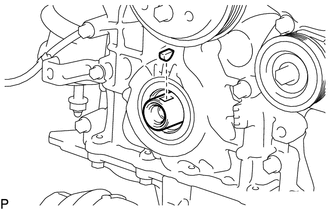

Remove the crankshaft timing gear key of the key groove.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

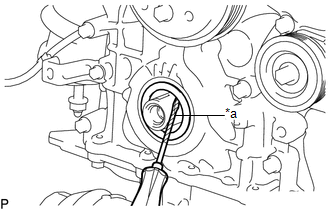

Using a screwdriver with its tip taped, pry out the timing gear case or timing chain case oil seal.

*a	Protective Tape

NOTE:

After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.

HINT:

Tape the screwdriver tip before use.
