DTC P0712: Transmission Fluid Temperature Sensor "A" Circuit Low Input; DTC P0713: Transmission Fluid Temperature Sensor "A" Circuit High Input [04/2013 - 08/2015]: Procedure

1. Disconnect the transmission wire connector from the transmission.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component without harness connected (Transmission Wire)

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   9 (OIL) - 1 (E2)	Always	79 Ω to 156 kΩ
   9 (OIL) - Body ground	Always	10 kΩ or higher
   1 (E2) - Body ground	Always	10 kΩ or higher

   HINT:

   If the resistance is out of the specified range with the ATF temperature shown in the table below, the driveability of the vehicle may decrease.

   ATF Temperature	Specified Condition
   10°C (50°F)	5 to 8 kΩ
   25°C (77°F)	2.5 to 4.5 kΩ
   110°C (230°F)	0.22 to 0.28 kΩ

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE TRANSMISSION WIRE (ATF TEMPERATURE SENSOR). Refer to  COMPONENTS [04/2013 - 08/2015]

Result:

OK

See step  2

1. Connect the transmission wire connector to the transmission.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

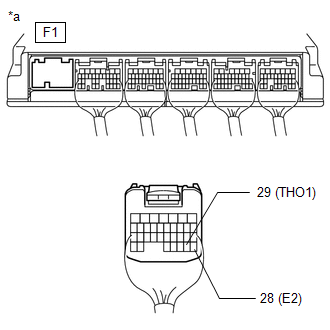

   *a	Rear view of wire harness connector (to ECM)

2. Disconnect the F1 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F1-29 (THO1) - F1-28 (E2)	Always	79 Ω to 156 kΩ

4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (Check or short)

   Tester Connection	Condition	Specified Condition
   F1-29 (THO1) - Body ground	Always	10 kΩ or higher
   F1-28 (E2) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ECM. Refer to  COMPONENTS [04/2013 - 08/2015]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
