Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [10/2017 - 09/2020] , or refer to PRECAUTION [09/2020 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2017 - 09/2020] , or refer to INITIALIZATION [09/2020 - 11/2021] , or refer to INITIALIZATION [11/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - 10/2023] , or refer to INITIALIZATION [10/2023 - ]

  3. REMOVE ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10 [10/2017 - 09/2020] , or refer to PROCEDURE - Step 10 [09/2020 - ]

  4. REMOVE V-RIBBED BELT

    Refer to REMOVAL [10/2017 - ]

  5. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE COOLER COMPRESSOR ASSEMBLY
  7. REMOVE GENERATOR ASSEMBLY

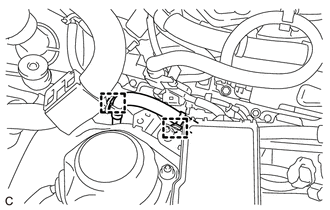

    1. Disengage the 2 wire harness clamps.
      GTY786257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

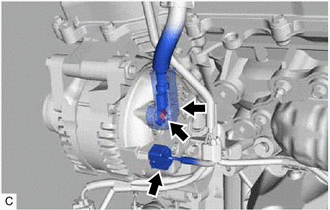

    2. Remove the terminal cap.
      GTY829715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the nut and disconnect the wire harness from terminal B.
    4. Disconnect the generator assembly connector.
    5. Disengage the clamp and disconnect the wire harness from the generator bracket.
      GTY786259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

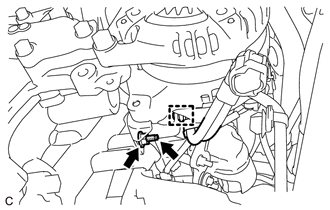

    6. Remove the nut, stud bolt and disconnect the generator bracket.

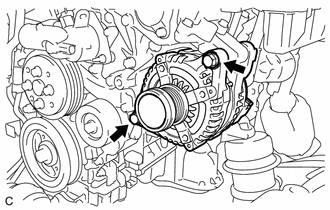

    7. Remove the 2 bolts and generator assembly.
      GTY786260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

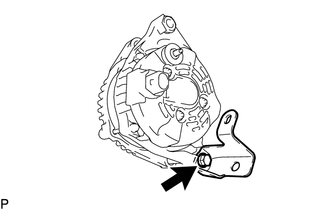

    8. Remove the bolt and generator bracket.
      GTY659291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
