Removal [10/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 350, 2023 Lexus IS 300, and 2022 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-RIBBED BELT

    Refer to REMOVAL [10/2017 - ]

  2. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

    Refer to REMOVAL [10/2017 - ]

  3. REMOVE WIRING HARNESS CLAMP BRACKET
    1. Disengage the clamp to disconnect the wire harness from the wiring harness clamp bracket.

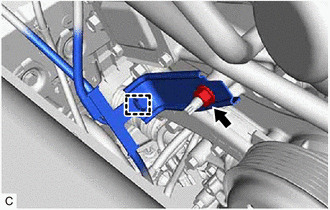

      GTY812888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and wiring harness clamp bracket from the timing chain cover assembly.
  4. REMOVE WATER PUMP PULLEY
    1. Using a screwdriver or equivalent with its tip wrapped in protective tape, hold the water pump pulley.
      GTY948837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      *b Hold
      *c Turn
    2. Remove the 4 bolts and water pump pulley.
  5. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY
    1. Remove the bolt and No. 2 idler pulley sub-assembly.

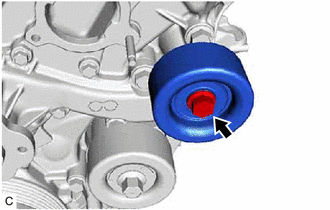

      GTY813067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE ENGINE WATER PUMP ASSEMBLY
    1. Remove the 15 bolts, engine water pump assembly and water pump gasket.

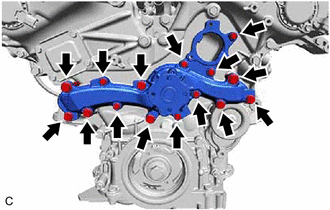

      GTY813053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
