Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

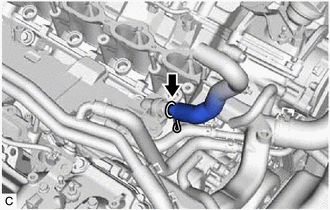

    1. Slide the clip and disconnect the ventilation hose from the PCV valve (ventilation valve sub-assembly).
      GTY499951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

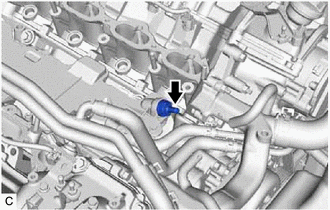

    2. Remove the PCV valve (ventilation valve sub-assembly) from the case separator.
      GTY499952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
