Removal [11/2021 - ]: Procedure

Refer to REMOVAL [11/2021 - ]

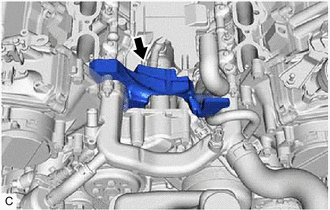

1. Remove the No. 2 engine cover sub-assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

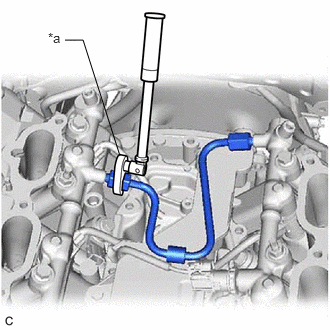

1. Using a 17 mm union nut wrench, loosen the 2 union nuts of the No. 4 fuel pipe sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	17 mm Union Nut Wrench

2. Remove the No. 4 fuel pipe sub-assembly from the fuel delivery pipe LH and fuel delivery pipe RH.

Refer to PROCEDURE - Step 5

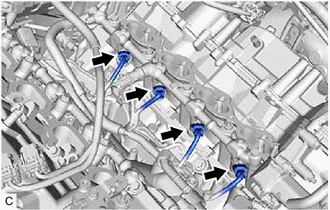

1. Disconnect the 4 direct fuel injector assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

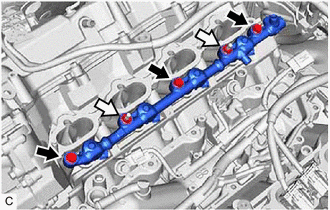

2. Remove the 3 bolts, 2 nuts and fuel delivery pipe LH with the direct fuel injector assemblies.
   NOTE:

   • If fuel intrudes into the combustion chamber, there may be adverse effects to the engine main body.
   • Make sure not to touch or strike the tips of the direct fuel injector assemblies.
   • Pull and remove the fuel delivery pipe LH in a straight line without tilting it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Nut

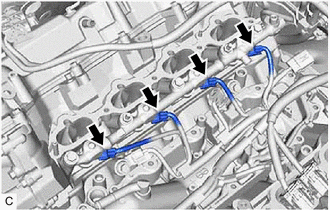

1. Disconnect the 4 direct fuel injector assembly connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

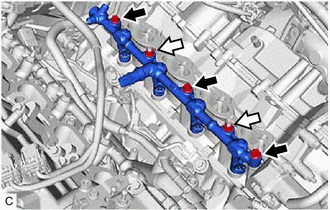

2. Remove the 3 bolts, 2 nuts and fuel delivery pipe RH with the direct fuel injector assemblies.
   NOTE:

   • If fuel intrudes into the combustion chamber, there may be adverse effects to the engine main body.
   • Make sure not to touch or strike the tips of the direct fuel injector assemblies.
   • Pull and remove the fuel delivery pipe RH in a straight line without tilting it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Nut

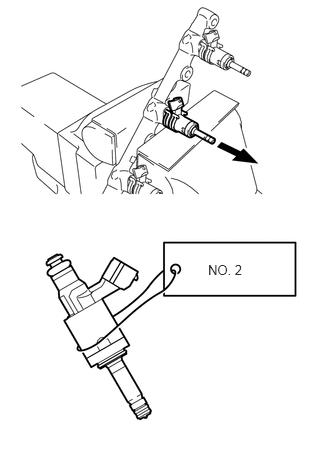

1. Secure the fuel delivery pipe LH and fuel delivery pipe RH in a vise between aluminum plates and pull out the 8 direct fuel injector assemblies.
   NOTE:

   • Pull and remove each direct fuel injector assembly in a straight line to avoid damaging the seal surface of the fuel delivery pipe LH and fuel delivery pipe RH O-ring.
   • For reinstallation, attach a tag or label with the corresponding cylinder number to each direct fuel injector assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the nozzle holder clamp from each direct fuel injector assembly.
3. Using needle nose pliers, remove the No. 3 fuel injector back-up ring from each direct fuel injector assembly.
4. Remove the O-ring and No. 1 fuel injector back-up ring from each direct fuel injector assembly.
5. Remove the C-ring and injector vibration insulator from each direct fuel injector assembly.

1. Using the tip of needle nose pliers, pinch and pull the fuel injector seal at several points to stretch it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Excessively pinching the fuel injector seal may damage the groove of the direct fuel injector assembly.
   • If a direct fuel injector assembly is dropped or the tip of a direct fuel injector assembly is struck, replace it with a new one.
2. Remove the fuel injector seal from each direct fuel injector assembly.
