Shift Paddle Switch Circuit [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HARNESS AND CONNECTOR (SHIFT PADDLE SWITCH - ECM)
    1. Disconnect the A117 ECM connector.

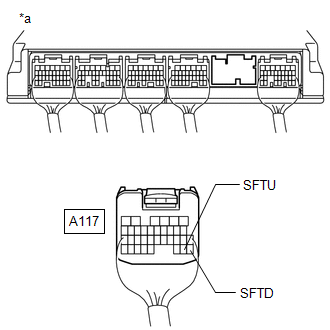

      GTY1083068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear view of wire harness connector
      (to ECM)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Shift Paddle Position Specified Condition
      A117-29 (SFTU) - Body ground Pull continuously "+" (Up shift) Below 2.5 Ω
      Release "+" (Up shift) 1 MΩ or higher
      A117-28 (SFTD) - Body ground Pull continuously "-" (Down shift) Below 2.5 Ω
      Release "-" (Down shift) 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [11/2021 - ]

    Result:

    NG

    See step  2

  2. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - ECM)
    1. Disconnect the K26 spiral cable sub-assembly connector.
    2. Disconnect the A117 ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A117-29 (SFTU) - K26-8 (SUP) Always Below 1 Ω
      A117-28 (SFTD) - K26-1 (SDN) Always Below 1 Ω
      A117-29 (SFTU) or K26-8 (SUP) - Body ground Always 10 kΩ or higher
      A117-28 (SFTD) or K26-1 (SDN) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - BODY GROUND)

    Result:

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - BODY GROUND)
    1. Disconnect the K26 spiral cable sub-assembly connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      K26-2 (ECC) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - BODY GROUND)

    Result:

    OK

    See step  4

  4. INSPECT SPIRAL CABLE SUB-ASSEMBLY
    1. Inspect the spiral cable sub-assembly.

      Refer to INSPECTION [10/2016 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE SPIRAL CABLE SUB-ASSEMBLY. Refer to  COMPONENTS [10/2016 - ]

    Result:

    OK

    See step  5

  5. INSPECT TRANSMISSION SHIFT SWITCH ASSEMBLY (SHIFT PADDLE SWITCH LH)
    1. Remove the transmission shift switch assembly (shift paddle switch LH).

      Refer to REMOVAL [11/2021 - ]

      GTY512901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Shift Paddle Switch LH (Transmission Shift Switch))
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      B-1 (SDN) - B-2 (ECC) Pull continuously "-" (Down shift) Below 2.5 Ω
      Release "-" (Down shift) 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE TRANSMISSION SHIFT SWITCH ASSEMBLY (SHIFT PADDLE SWITCH LH). Refer to  COMPONENTS [11/2021 - ]

    Result:

    OK

    See step  6

  6. INSPECT TRANSMISSION SHIFT SWITCH ASSEMBLY (SHIFT PADDLE SWITCH RH)
    1. Remove the transmission shift switch assembly (shift paddle switch RH).

      Refer to REMOVAL [11/2021 - ]

      GTY497450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Shift Paddle Switch RH (Transmission Shift Switch))
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A-3 (SUP) - A-2 (ECC) Pull continuously "+" (Up shift) Below 2.5 Ω
      Release "+" (Up shift) 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE TRANSMISSION SHIFT SWITCH ASSEMBLY (SHIFT PADDLE SWITCH RH). Refer to  COMPONENTS [11/2021 - ]

    Result:

    OK

    See step  7

  7. INSPECT NO. 1 SWITCH WIRE
    1. Install the transmission shift switch assembly.
      GTY1083104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (No. 1 switch wire)

      Refer to INSTALLATION [11/2021 - ]

    2. Disconnect the z15 No. 1 switch wire connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      z15-1 (SUP) - z15-4 (ECC) Pull continuously "+" (Up shift) Below 2.5 Ω
      Release "+" (Up shift) 1 MΩ or higher
      z15-3 (SDN) - z15-4 (ECC) Pull continuously "-" (Down shift) Below 2.5 Ω
      Release "-" (Down shift) 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [11/2021 - ]

    Result:

    NG

    REPLACE NO. 1 SWITCH WIRE. Refer to  COMPONENTS [11/2021 - ]
