Components [11/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.

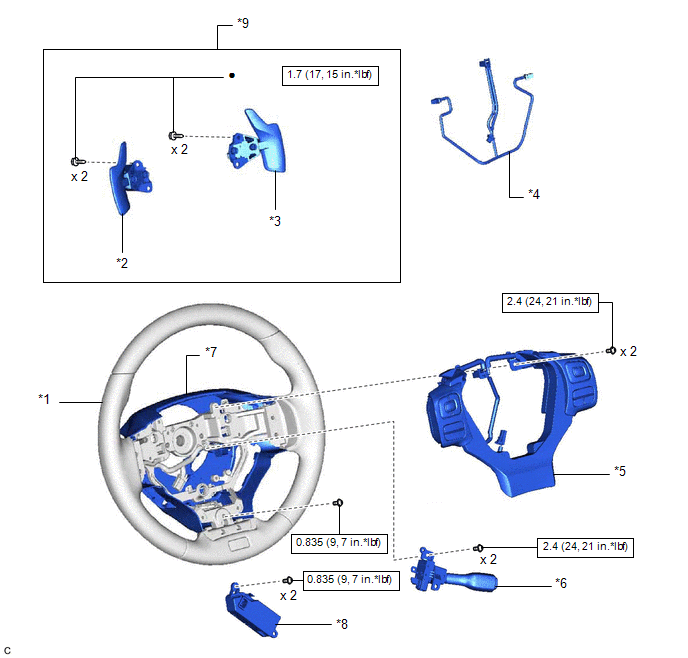

| *1 | STEERING WHEEL ASSEMBLY | *2 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) LH |
| *3 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) RH | *4 | NO. 1 SWITCH WIRE |
| *5 | STEERING PAD SWITCH ASSEMBLY | *6 | CRUISE CONTROL MAIN SWITCH |
| *7 | LOWER STEERING WHEEL BOSS COVER | *8 | STEERING VIBRATION AND HEATER ECU |
| *9 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
