Removal [09/2020 - ]: Procedure

  1. REMOVE REAR COMBINATION LIGHT COVER LH

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR COMBINATION LIGHT COVER RH

    HINT:

    Use the same procedure as for the LH side.

  3. REMOVE REAR BUMPER ASSEMBLY

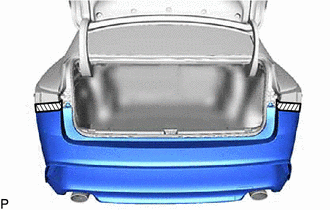

    1. Apply protective tape around the rear bumper assembly as shown in the illustration.
      GTY966593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

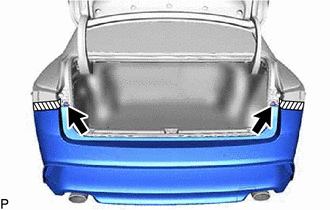

    2. Remove the 2 screws.
      GTY966799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

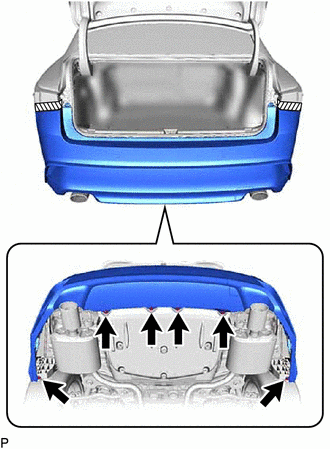

    3. Remove the 6 clips.
      GTY966798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

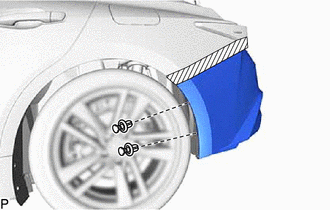

    4. Remove the 2 clips.
      GTY966807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

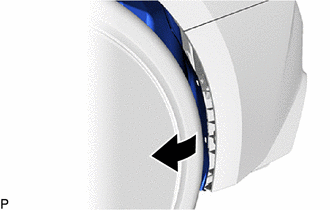

    5. Lift up the rear wheel house liner LH as shown in the illustration.
      GTY1082855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

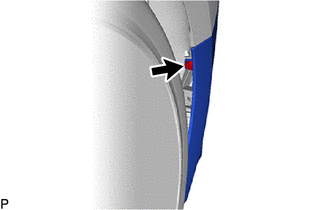

    6. Remove the clip.
      GTY1082860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

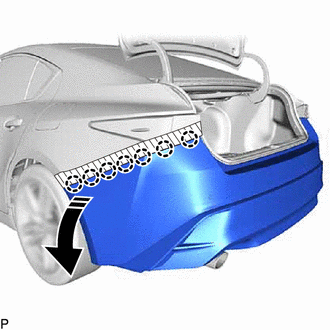

    7. Disengage the 7 claws as shown in the illustration.
      GTY967883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

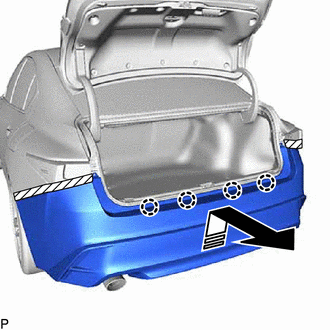

    8. Disengage the 4 claws and remove the rear bumper assembly as shown in the illustration.
      GTY967009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    9. w/ Parking Support Brake System:
      1. Disconnect the connector.
