Removal [09/2020 - ]: Procedure

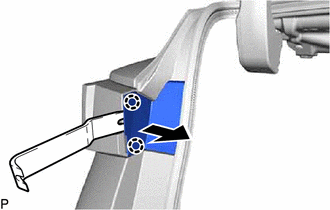

1. Using a moulding remover, disengage the 2 claws as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

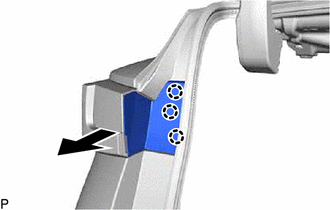

2. Disengage the 3 claws to remove the rear combination light cover as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

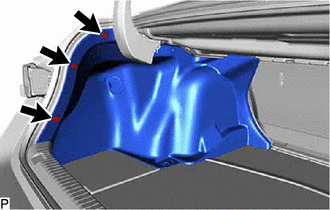

1. Remove the 3 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

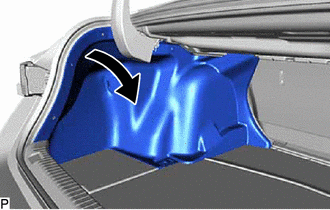

2. Turn back the luggage compartment trim cover as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

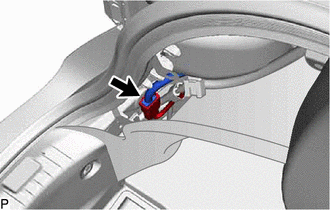

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

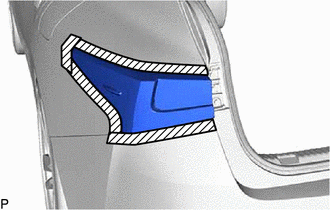

2. Apply protective tape around the rear combination light sub-assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

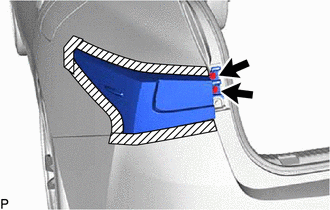

3. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

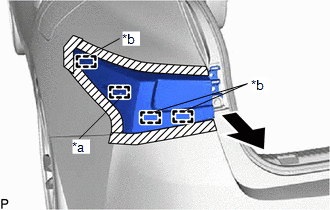

4. Pull the rear combination light sub-assembly toward the rear of the vehicle as shown in the illustration to disengage the pin and 3 guides and separate the rear combination light sub-assembly.
   NOTE:

   To prevent the rear combination light sub-assembly from falling when disengaging the pin and guides, lightly hold the rear combination light sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Pin
   *b	Guide

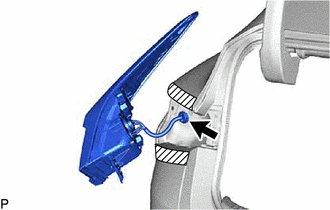

5. Disengage the grommet to remove the rear combination light sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to REMOVAL [09/2020 - ]

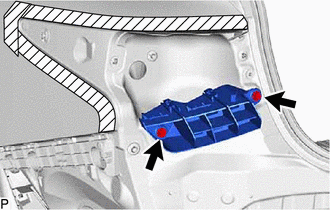

1. Remove the 2 screws and rear bumper upper retainer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

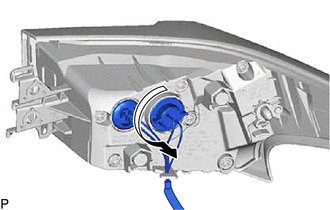

1. Turn the rear combination light socket and wire with the rear turn signal light bulb as shown in the illustration to disconnect them as a unit.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the rear turn signal light bulb from the rear combination light socket and wire.
