Disassembly [11/2021 - ]: Procedure

  1. REMOVE REAR CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 2

  2. REMOVE REAR CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 3

  3. REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 4

  4. REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)

    Refer to PROCEDURE - Step 5

  5. REMOVE NO. 3 LUGGAGE ROOM WIRE (w/ Parking Support Brake System)
    1. Disengage the 6 clamps to remove the No. 3 luggage room wire.
      GTY966812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 REAR BUMPER PAD
    1. Remove the No. 1 rear bumper pad.
      GTY966813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  7. REMOVE NO. 2 REAR BUMPER PAD
    1. for Type A:
      1. Remove the 2 No. 2 rear bumper pads.
        GTY966742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Use the same procedure for the RH side and LH side.

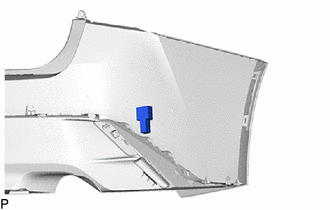

    2. for Type B:
      1. Remove the No. 2 rear bumper pad.
        GTY1138122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Use the same procedure for the RH side and LH side.

  8. REMOVE NO. 1 MOULDING TAPE
    1. Remove the No. 1 moulding tape.
      GTY966845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  9. REMOVE REAR BUMPER ARM LH
    1. Remove the rear bumper arm LH.
      GTY966815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR BUMPER ARM RH

    HINT:

    Use the same procedure as for the LH side.

  11. REMOVE REFLEX REFLECTOR ASSEMBLY LH
    1. Remove the screw.
      GTY966746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws to remove the reflex reflector assembly LH.
      GTY966832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REFLEX REFLECTOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE REAR BUMPER CENTER EXTENSION SUB-ASSEMBLY (except 2UR-GSE)
    1. Remove the 14 clips (A).
      GTY1083003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A) *b Clip (B)
    2. Remove the 6 clips (B).
    3. Disengage the 4 claws to remove the rear bumper center extension sub-assembly.
      GTY1082837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR BUMPER CENTER EXTENSION SUB-ASSEMBLY (for 2UR-GSE)
    1. Remove the 14 clips (A).
      GTY1082874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip (A) *b Clip (B)
    2. Remove the 6 clips (B).
    3. Disengage the 4 claws to remove the rear bumper center extension sub-assembly.
      GTY1082992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR BUMPER PIECE (except 2UR-GSE)
    1. Disengage the 3 claws.
      GTY966758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
    2. Disengage the hook to remove the rear bumper piece.
  16. REMOVE REAR BUMPER HOLE COVER LH (for 2UR-GSE)
    1. Disengage the 2 claws.
      GTY1082991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
    2. Disengage the hook to remove the rear bumper hole cover LH.
  17. REMOVE REAR BUMPER HOLE COVER RH (for 2UR-GSE)

    HINT:

    Use the same procedure as for the LH side.

  18. REMOVE REAR COMBINATION LIGHT SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 3

  19. REMOVE REAR COMBINATION LIGHT SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  20. REMOVE REAR BUMPER UPPER RETAINER LH

    Refer to PROCEDURE - Step 5

  21. REMOVE REAR BUMPER UPPER RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  22. REMOVE NO. 2 REAR BUMPER SIDE SUPPORT LH
    1. Using a screwdriver, disengage the 3 clips as shown in the illustration.
      GTY966836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 claws to remove the No. 2 rear bumper side support LH.
      GTY966624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE NO. 2 REAR BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.

  24. REMOVE NO. 1 REAR BUMPER SIDE SUPPORT LH
    1. Remove the 2 screws.
      GTY966747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide and claw to remove the No. 1 rear bumper side support LH.
      GTY966860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE NO. 1 REAR BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.

  26. REMOVE REAR BUMPER ENERGY ABSORBER
    1. Disengage the 2 guides to remove the rear bumper energy absorber.
      GTY966855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
    1. Remove the 8 bolts to rear bumper reinforcement sub-assembly.
      GTY966854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
