- REMOVE REAR CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)
Refer to PROCEDURE - Step 2
- REMOVE REAR CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)
Refer to PROCEDURE - Step 3
- REMOVE REAR CENTER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
Refer to PROCEDURE - Step 4
- REMOVE REAR CORNER ULTRASONIC SENSOR RETAINER (w/ Parking Support Brake System)
Refer to PROCEDURE - Step 5
- REMOVE NO. 3 LUGGAGE ROOM WIRE (w/ Parking Support Brake System)
- Disengage the 6 clamps to remove the No. 3 luggage room wire.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

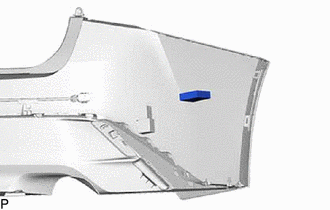

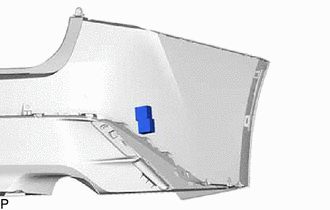

- REMOVE NO. 1 REAR BUMPER PAD
- Remove the No. 1 rear bumper pad.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Use the same procedure for the RH side and LH side.

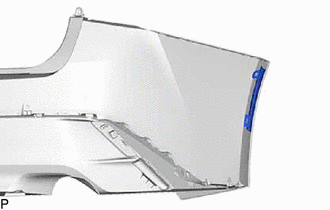

- REMOVE NO. 2 REAR BUMPER PAD
- Remove the 2 No. 2 rear bumper pads.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Use the same procedure for the RH side and LH side.

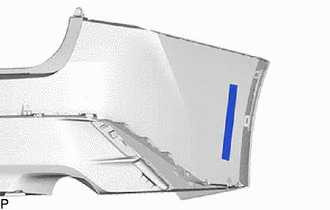

- REMOVE NO. 1 MOULDING TAPE
- Remove the No. 1 moulding tape.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
HINT:
Use the same procedure for the RH side and LH side.

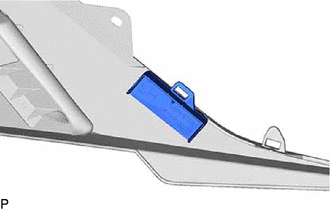

- REMOVE REAR BUMPER ARM LH
- Remove the rear bumper arm LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER ARM RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REFLEX REFLECTOR ASSEMBLY LH
- Remove the screw.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the 2 claws to remove the reflex reflector assembly LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REFLEX REFLECTOR ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER CENTER EXTENSION SUB-ASSEMBLY

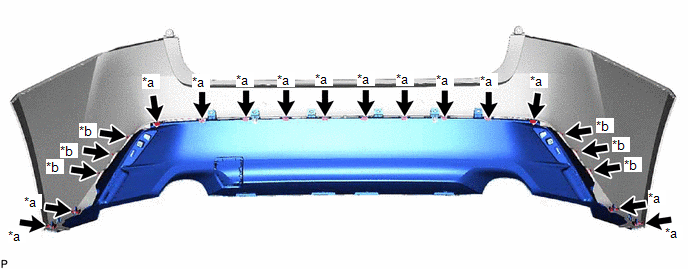

- w/o Rear Bumper Corner Extension:
- Remove the 14 clips (A).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

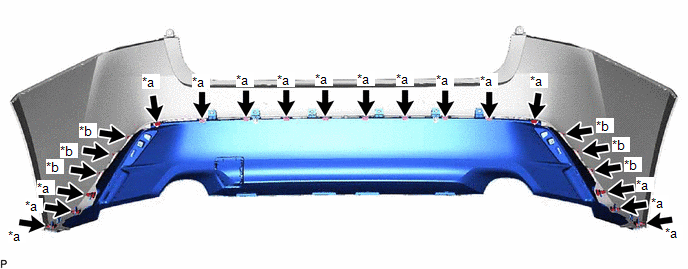

- w/ Rear Bumper Corner Extension:
- Remove the 16 clips (A).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 6 clips (B).
- Disengage the 4 claws to remove the rear bumper center extension sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER CORNER EXTENSION LH (w/ Rear Bumper Corner Extension)
- Remove the rear bumper corner extension LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER CORNER EXTENSION RH (w/ Rear Bumper Corner Extension)
HINT:
Use the same procedure as for the LH side.

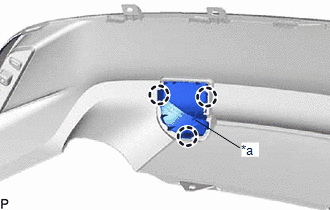

- REMOVE REAR BUMPER PIECE
- Disengage the 3 claws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the hook to remove the rear bumper piece.
- REMOVE REAR COMBINATION LIGHT SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 3
- REMOVE REAR COMBINATION LIGHT SUB-ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER UPPER RETAINER LH
Refer to PROCEDURE - Step 5
- REMOVE REAR BUMPER UPPER RETAINER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE NO. 2 REAR BUMPER SIDE SUPPORT LH

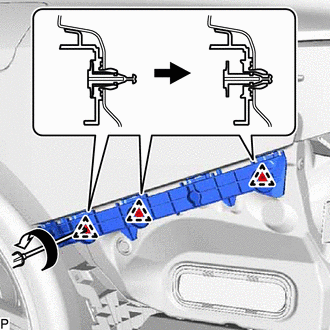

- Using a screwdriver, disengage the 3 clips as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the 4 claws to remove the No. 2 rear bumper side support LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 2 REAR BUMPER SIDE SUPPORT RH
HINT:
Use the same procedure as for the LH side.
- REMOVE NO. 1 REAR BUMPER SIDE SUPPORT LH
- Remove the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the guide and claw to remove the No. 1 rear bumper side support LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 1 REAR BUMPER SIDE SUPPORT RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER ENERGY ABSORBER
- Disengage the 2 guides to remove the rear bumper energy absorber.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

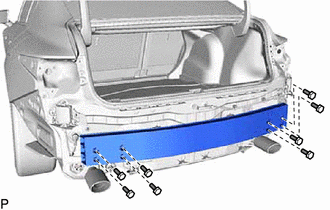

- REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
- Remove the 8 bolts to rear bumper reinforcement sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
