Disassembly [04/2013 - 10/2016]: Procedure

  1. REMOVE REAR BUMPER PAD

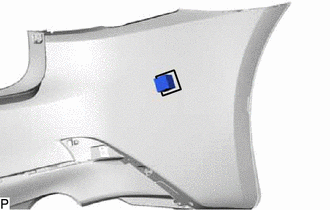

    1. Remove the rear bumper pad.
      GTY464006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

  2. REMOVE REAR BUMPER PIECE

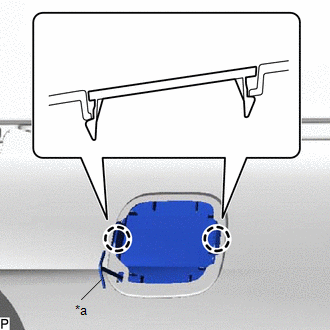

    1. Disengage the 2 claws.
      GTY464420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
    2. Disengage the hook to remove the rear bumper piece.
  3. REMOVE REFLEX REFLECTOR ASSEMBLY LH

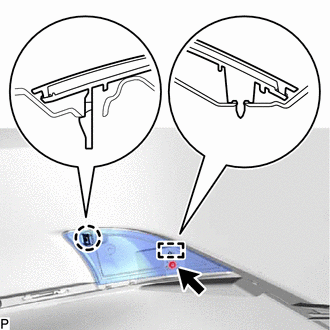

    1. Install the screw.
      GTY464000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage claw and guide, and remove the reflex reflector assembly LH.
  4. REMOVE REFLEX REFLECTOR ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  5. REMOVE REAR LOWER BUMPER COVER

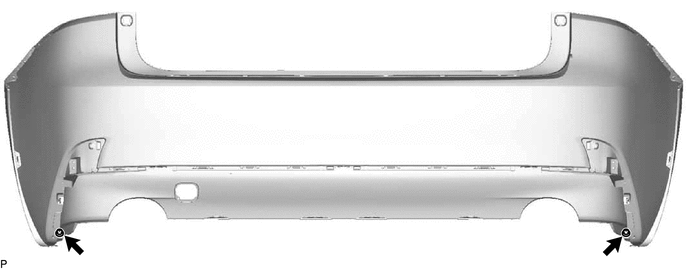

    1. Remove the 2 screws.
      GTY470235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

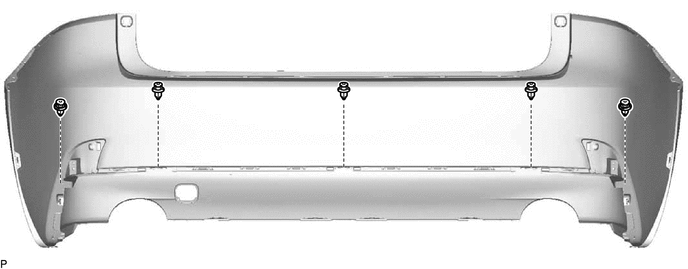

    2. Remove the 5 clips.
      GTY464002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

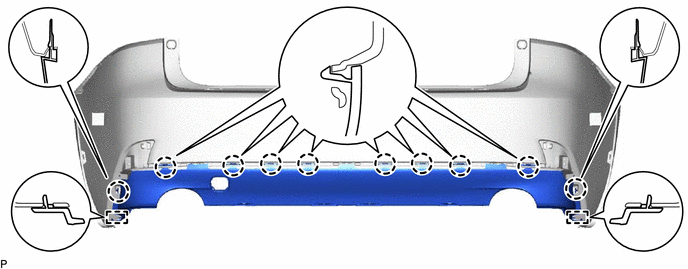

    3. Disengage the 10 claws and 2 guides, and remove the lower bumper cover.
      GTY463998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 3 LUGGAGE ROOM WIRE (w/ Intuitive Parking Assist System)

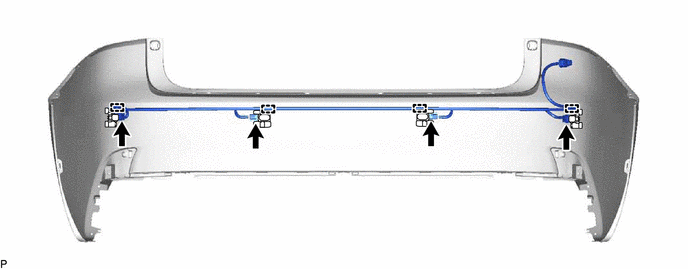

    1. Disengage the 4 clamps.
      GTY464001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 4 connectors to remove the No. 3 luggage room wire.
  7. REMOVE ULTRASONIC SENSOR WITH CLIP (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 3

    HINT:

    Use the same procedure for all ultrasonic sensor with clips.

  8. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER (w/ Intuitive Parking Assist System)

    Refer to PROCEDURE - Step 4

    HINT:

    Use the same procedure for all No. 1 ultrasonic sensor retainers.

  9. REMOVE REAR LIGHT COVER (for LH Side)

    Refer to PROCEDURE - Step 1 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 1 [08/2015 - 10/2016]

  10. REMOVE REAR COMBINATION LIGHT ASSEMBLY LH

    Refer to PROCEDURE - Step 2 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 2 [08/2015 - 10/2016]

  11. REMOVE REAR LIGHT COVER (for RH Side)

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE REAR COMBINATION LIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  13. REMOVE REAR BUMPER UPPER RETAINER LH

    Refer to PROCEDURE - Step 5 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 5 [08/2015 - 10/2016]

  14. REMOVE REAR BUMPER UPPER RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  15. REMOVE NO. 2 REAR BUMPER SIDE SUPPORT LH

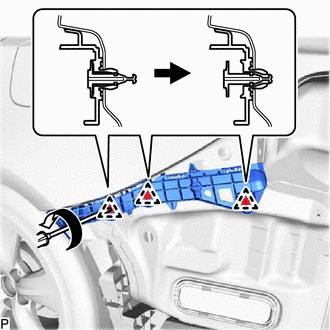

    1. Using a screwdriver, disengage the 3 clips as shown in the illustration.
      GTY463999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

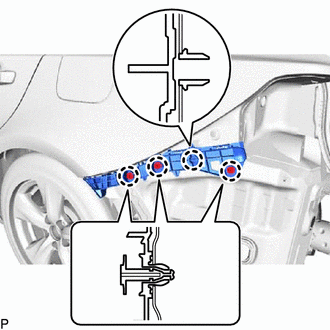

    2. Disengage the 4 claws and remove the No. 2 rear bumper side support LH.
      GTY463977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 REAR BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.

  17. REMOVE NO. 1 REAR BUMPER SIDE SUPPORT LH

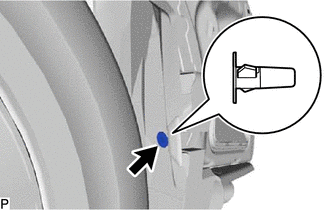

    1. Remove the grommet.
      GTY463800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

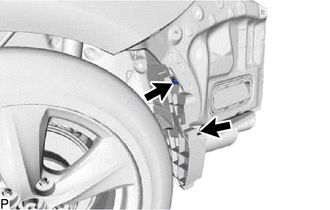

    2. Remove the 2 screws.
      GTY463801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

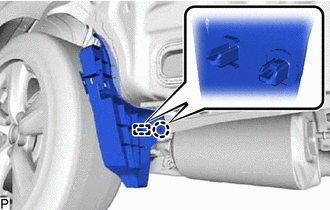

    3. Disengage the guide and claw to remove the No. 1 rear bumper side support LH.
      GTY470190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 1 REAR BUMPER SIDE SUPPORT RH

    HINT:

    Use the same procedure as for the LH side.

  19. REMOVE REAR BUMPER ENERGY ABSORBER

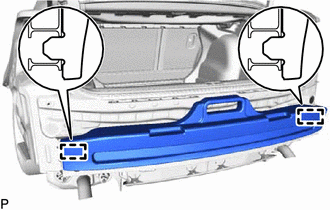

    1. Disengage the 2 guides to remove the rear bumper energy absorber.
      GTY463798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

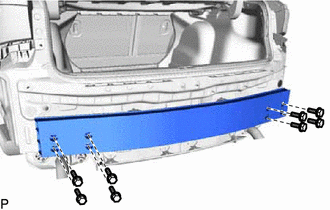

  20. REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
    GTY463797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 8 bolts to rear bumper reinforcement sub-assembly.
