Removal [10/2015 - ]: Procedure

  1. REMOVE NO. 2 FORWARD RECOGNITION COVER
    1. Detach the 2 claws and 2 guides and remove the No. 2 forward recognition cover as shown in the illustration.

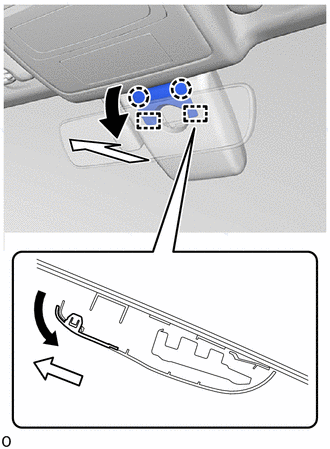

      GTY837295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:

      If these claws are detached separately, they may break. Detach the claws simultaneously.

  2. REMOVE NO. 1 FORWARD RECOGNITION COVER
    1. Detach the 2 clips and 2 guides and remove the No. 1 forward recognition cover as shown in the illustration.

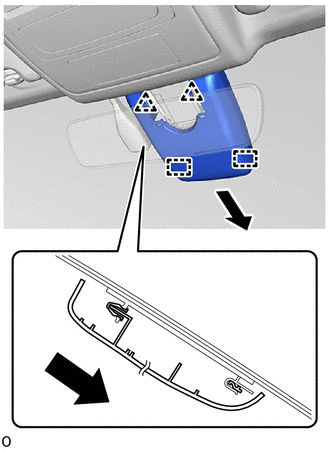

      GTY799504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      NOTE:

      Push the cover while keeping it parallel with the surface of the glass so as not to damage the clips and guides.

  3. REMOVE FORWARD RECOGNITION LATCH
    1. w/o Camera Heater:

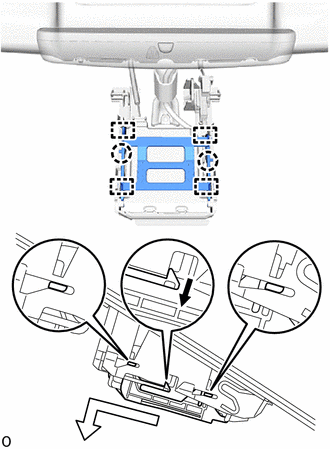

      GTY810129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
      1. Detach the 2 claws and 4 guides and remove the forward recognition latch as shown in the illustration.
    2. w/ Camera Heater:

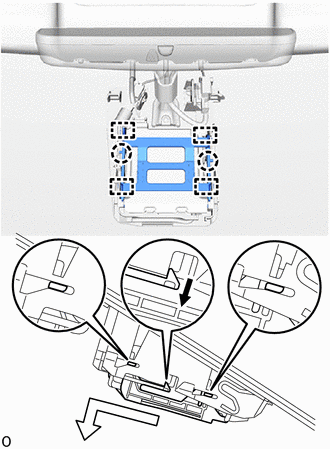

      GTY833448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
      1. Detach the 2 claws and 4 guides and remove the forward recognition latch as shown in the illustration.
  4. REMOVE FORWARD RECOGNITION CAMERA
    1. w/o Camera Heater:

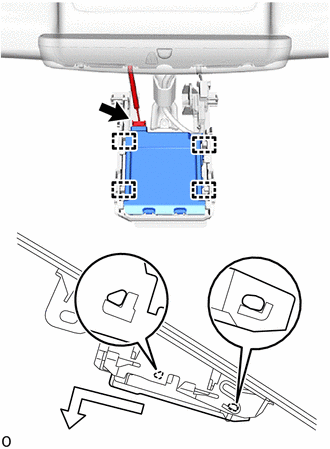

      GTY823439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Remove in this Direction
      NOTE:
      • Do not pull the harness forcibly when disconnecting the connector.
      • If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
      • If the forward recognition camera has been struck or dropped, replace it with a new one.
      • Do not apply excessive force.
      1. Disconnect the connector.
      2. Detach the 4 guides and remove the forward recognition camera as shown in the illustration.
    2. w/ Camera Heater:

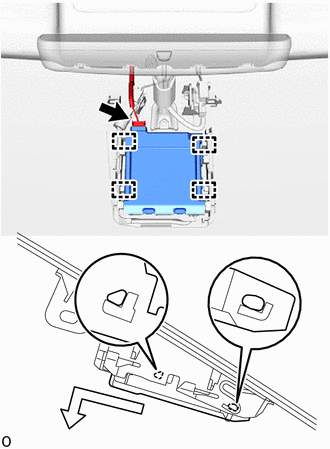

      GTY818569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Remove in this Direction
      NOTE:
      • Do not pull the harness forcibly when disconnecting the connector.
      • If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
      • If the forward recognition camera has been struck or dropped, replace it with a new one.
      • Do not apply excessive force.
      1. Disconnect the connector.
      2. Detach the 4 guides and remove the forward recognition camera as shown in the illustration.
  5. REMOVE FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY
    NOTE:

    During work, do not touch the shaded area on the forward recognition with heater hood sub-assembly shown in the illustration.

    GTY781728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.

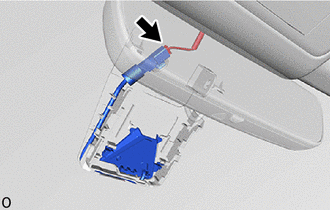

      GTY820884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not pull the harness forcibly when disconnecting the connector.

    2. Detach the connector clamp.
      GTY781783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the guide and remove the wire harness.

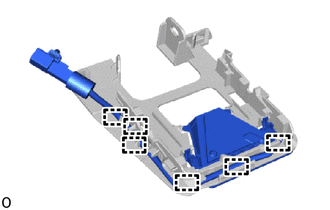

      GTY828732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the claw in the direction indicated by the arrow (1) in the illustration.

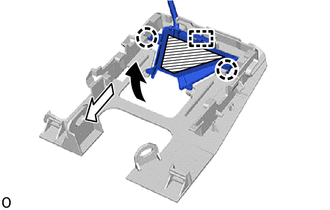

      GTY789228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
      Heater Area
      NOTE:

      Do not press the heater area.

    5. Detach the guide in the direction indicated by the arrow (2) in the illustration to remove the forward recognition with heater hood sub-assembly.
