Adjustment [08/2019 - ]: Procedure

  1. PREPARATION FOR MILLIMETER WAVE RADAR SENSOR ASSEMBLY ADJUSTMENT
    1. Park the vehicle on a level surface where the area in front of the vehicle shown in the illustration is free of metal objects.

      HINT:

      Metal objects with a height of 50 mm (1.97 in.) or less placed within the area shown in the illustration will not affect the adjustment.

      GTY810200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 5 m (16.4 ft.)
      *b 6 m (19.7 ft.)
      *c 4 m (13.1 ft.)
      *d 2 m (6.56 ft.)
      Do not place any metal objects in this area
      Do not place metal objects with a height of more than 50 mm (1.97 in.) in this area
    2. Check the levelness of the ground.
      1. Check the levelness of the ground at the 3 points shown in the illustration.
        GTY801039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a 3 m (9.84 ft.)
        Levelness Check Point
      2. Place the level on each levelness check point and check that the air bubble of the level is centered.
        GTY579905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Adjust the tire inflation pressure to the specified pressure.

      Refer to PROCEDURE - Step 1

    4. Clean the radiator grill garnish or millimeter wave radar sensor assembly.
    5. Visually inspect the front of the vehicle.

      HINT:

      Confirm that there is no damage or deformation.

    6. Visually inspect the front bumper cover, radiator grill and stays.

      HINT:

      Confirm that there is no damage or deformation.

  2. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY VERTICALLY AND HORIZONTALLY
    1. Adjust SST (reflector) height.
      GTY954634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a SST (reflector)
      1. Adjust SST (reflector) so that the center of SST (reflector) is the same height as the millimeter wave radar sensor.

        HINT:

        Make sure to align the center of SST (reflector) with the millimeter wave radar sensor (the center of the emblem).

        Reference Value

        902 mm (2.96 ft.)

        • SST: 09870-60000
          1. 09870-60010
        • SST: 09870-60040
    2. Place SST (reflector).
      1. Hang a weight with a pointed tip from the center of the symbol emblem, and mark the rear center point of the vehicle (point A) on the ground.

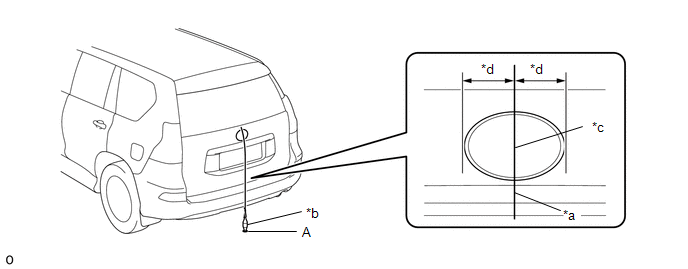

        GTY950957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a String *b Weight
        *c Center *d Bilateral Symmetry

        HINT:

        Lightly flick the string with your fingers several times to confirm that the string is perpendicular to the ground.

      2. Hang a weight with a pointed tip from the center of the radiator grill garnish, and mark the front center point of the vehicle (point B) on the ground (placement position).

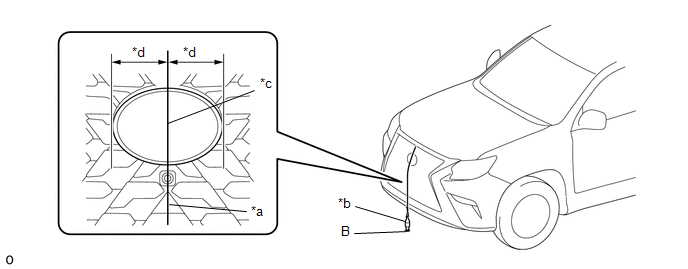

        GTY950481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a String *b Weight
        *c Center *d Bilateral Symmetry

        HINT:

        Lightly flick the string with your fingers several times to confirm that the string is perpendicular to the ground.

      3. Using tape and a string, create a line that connects point B to point A and extends at least 3000 mm (9.84 ft.) beyond the front center point of the vehicle.

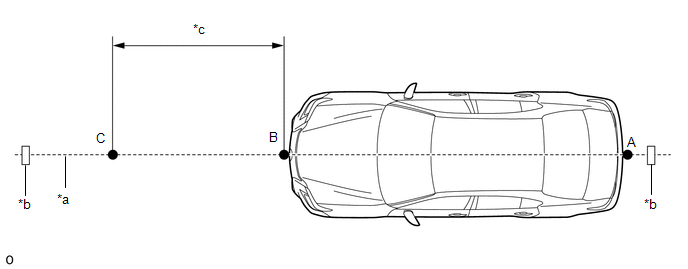

        GTY949285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a String *b Tape
        *c 3000mm (9.84 ft.) - -

        HINT:

        • Make sure the string is taut when securing it with tape.
        • Lightly flick the string with your fingers several times to confirm that the string is aligned with point B.
      4. Mark point C (SST (reflector) placement position) at a position 3000 mm (9.84 ft.) from point B.
      5. Place SST (reflector) at point C.
    3. Front Beam Axis Adjustment:
      NOTE:
      • Ensure that nobody enters the adjustment area during the adjustment.
      • Do not turn off the Techstream or engine switch.
      • Do not move or shake the vehicle during adjustment (do not get in or out of the vehicle).
      • Close all of the doors.
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on and turn the cruise control main switch on.
      4. Enter the following menus:Body Electrical / Pre-Crash 2 / Utility / Front Beam Axis Adjustment.
      5. According to the display on the Techstream, press "Next".
      6. Perform the adjustment according to the display on the Techstream.
        NOTE:

        If an error code is displayed, perform troubleshooting according to the following table, then perform the adjustment again.

        Error No. Error Description Cause of Error Action to be Taken
        1 No target abnormality
        • SST (reflector) is placed incorrectly.
        • The radiator grille garnish or millimeter wave radar sensor assembly is covered by dirt or snow.
        		 Place SST (reflector) in the correct position. (ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY VERTICALLY AND HORIZONTALLY (b) Place the reflector)
        Clean the radiator grille garnish or millimeter wave radar sensor assembly.
        Check the installation condition of the front bumper cover and radiator grille.
        2 Target distance abnormality
        • SST (reflector) is placed incorrectly.
        		 Place SST (reflector) in the correct position. (ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY VERTICALLY AND HORIZONTALLY (b) Place the reflector)
        3 Plural targets abnormality
        • There is a reflective object near SST (reflector).
        • A person entered the adjustment area.
        		 Remove any reflective objects.
        Ensure that nobody enters the adjustment area during the adjustment. (PREPARATION FOR MILLIMETER WAVE RADAR SENSOR ASSEMBLY ADJUSTMENT)
        4 Target move abnormality
        • SST (reflector) was moved out of position or shaking during the adjustment due to wind.
        • SST (reflector) shaking during beam axis adjustment.
        • A person entered the adjustment area.
        		 Place the reflector in the correct position. (ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY VERTICALLY AND HORIZONTALLY (b) Place the reflector)
        Perform adjustment in an area with no wind.
        Ensure that nobody enters the adjustment area during the adjustment. (PREPARATION FOR MILLIMETER WAVE RADAR SENSOR ASSEMBLY ADJUSTMENT)
        5 Motor stop
        • Operation of the millimeter wave radar sensor assembly (motor) is abnormal.
        		 Turn the engine switch off then on (IG). (ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY VERTICALLY AND HORIZONTALLY (c) Front Beam Axis Adjustment)
        Check for DTCs.
        Refer to DTC CHECK / CLEAR [08/2019 - ]
        6 Target angle abnormality
        • SST (reflector) is placed incorrectly.
        • The beam axis of the millimeter wave radar sensor assembly is outside the automatic correction range.
        		 Place SST (reflector) in the correct position. (ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY VERTICALLY AND HORIZONTALLY (b) Place the reflector)
        Check the condition of the millimeter wave radar sensor assembly.
        Check the condition of the sensor, radiator grill and front bumper cover.
        7 Radar abnormality
        • Operation of the millimeter wave radar sensor assembly is abnormal.
        		 Check for DTCs.
        Refer to DTC CHECK / CLEAR [08/2019 - ]
        8 Radar dirtiness
        • There is dirt on the radiator grille garnish or millimeter wave radar sensor assembly.
        • Dirt, snow or other obstruction is on the surface of the radiator grille garnish or millimeter wave radar sensor assembly.
        		 Clean the radiator grille garnish or millimeter wave radar sensor assembly.
        9 Temperature abnormality
        • The temperature around the millimeter wave radar sensor assembly is outside the operable range of the millimeter wave radar sensor assembly.
        		 Wait until the temperature drops to the operable range (-30 to 50°C).
        10 Voltage abnormality
        • IG power source voltage is outside the operable range of the millimeter wave radar sensor assembly.
        		 Check the battery voltage (specified condition: 10 to 16 V).
        Refer to PROCEDURE - Step 1
        11 External communication abnormality
        • CAN communication between DSS and the millimeter wave radar sensor assembly is abnormal.
        		 Check the condition of the connectors.
        12 Radar axis aiming failure upward
        • The beam axis of the millimeter wave radar sensor assembly is outside the automatic correction range (upward).
        		 Check the installation condition of the front bumper cover and radiator grille.
        Manually change the beam axis. (MANUALLY CHANGE BEAM AXIS OF MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
        13 Radar axis aiming failure downward
        • The beam axis of the millimeter wave radar sensor assembly is outside the automatic correction range (downward).
        		 Check the installation condition of the front bumper cover and radiator grille.
        Manually change the beam axis. (MANUALLY CHANGE BEAM AXIS OF MILLIMETER WAVE RADAR SENSOR ASSEMBLY)
        14 Vehicle speed abnormality
        • The vehicle is not stationary.
        		 Ensure that the vehicle remains stationary.
        15 Other
        • A mode change error occurred.
        • Operation of the yaw rate sensor is abnormal.
        • The vehicle is shaking.
        		 Perform adjustment again. (ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY VERTICALLY AND HORIZONTALLY (c) Front Beam Axis Adjustment)
        Check for DTCs.
        Refer to DTC CHECK / CLEAR [08/2019 - ]
        Ensure that the vehicle remains stationary.
      7. Press the "Exit" button to finish beam axis adjustment.
    4. Front Beam Axis Misalignment Reading:
      NOTE:
      • Ensure that nobody enters the adjustment area during the adjustment.
      • Do not turn off the Techstream or engine switch.
      • Do not move or shake the vehicle during adjustment (do not get in or out of the vehicle).
      • Close all of the doors.
      1. Enter the following menus:Body Electrical / Pre-Crash 2 / Utility / Front Beam Axis Misalignment Reading.
      2. According to the display on the Techstream, press "Next".
      3. Perform the adjustment according to the display on the Techstream.
        SPECIFIED CONDITION:

        Vertical -0.5 to 0.5 deg
        Horizontal -0.5 to 0.5 deg

        HINT:

        If the result is not as specified, perform beam axis adjustment again.

    5. Front Beam Axis Offset Reading:
      1. Enter the following menus:Body Electrical / Pre-Crash 2 / Utility / Front Beam Axis Offset Reading.
      2. According to the display on the Techstream, press "Next".
      3. Perform the adjustment according to the display on the Techstream.
        SPECIFIED CONDITION:

        Vertical learning value 0 deg
        Horizontal learning value 0 deg

        HINT:

        If the result is not as specified, perform beam axis adjustment again.

      4. Turn the engine switch off.
      5. Disconnect the Techstream from the DLC3.
  3. MANUALLY CHANGE BEAM AXIS OF MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    NOTE:
    • Manually change the beam axis when error code 12 (radar axis aiming failure upward) or 13 (radar axis aiming failure downward) is displayed when the target is correctly set.
    • If the beam axis change mechanism is in the most upward or downward position, check for DTCs.
    • If no DTCs are output, repair or correctly install the front bumper assembly.

    HINT:

    The millimeter wave radar sensor assembly is fixed to the front bumper assembly. If the installation position of the front bumper assembly is misaligned, the beam axis will also be misaligned. Therefore, when the front bumper assembly is deformed, even if the millimeter wave radar sensor assembly beam axis is manually changed or the millimeter wave radar sensor assembly is replaced, the millimeter wave radar sensor assembly beam axis adjustment may not complete.

    1. Remove the upper radiator support seal.

      Refer to PROCEDURE - Step 17

    2. Turn the bolt to change the beam axis of the millimeter wave radar sensor assembly.

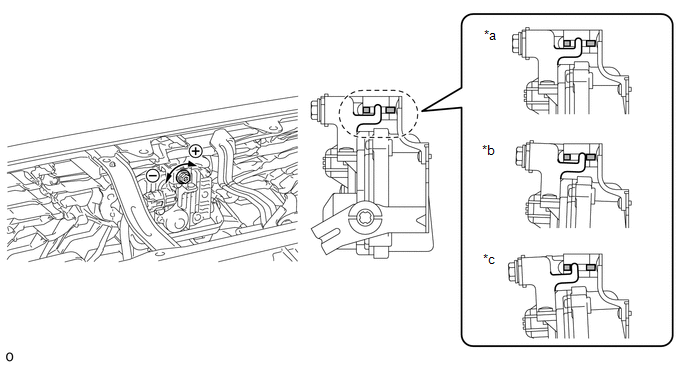

      GTY951582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Standard Position *b Most Downward Position
      *c Most Upward Position - -
      Vertical axis change Upward direction: Turn screwdriver to negative (-) side
      Downward direction: Turn screwdriver to positive (+) side

      Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)

      NOTE:

      The manual axis switching mechanism may get damaged if a torque higher than the above is applied.

      If the manual axis switching mechanism is damaged, replace the No. 1 millimeter wave radar sensor bracket.

      HINT:

      • Make sure to set the beam axis to the most upward or downward position.
      • Manually change the beam axis to the position *b (most downward position) when error code 12 (radar axis aiming failure upward) is displayed.
      • Manually change the beam axis to the position *c (most upward position) when error code 13 (radar axis aiming failure downward) is displayed.
    3. Perform Front Beam Axis Adjustment. (ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY VERTICALLY AND HORIZONTALLY (c) Front Beam Axis Adjustment)
    4. Install the upper radiator support seal.
