Installation [10/2015 - ]: Procedure

1. Temporarily install the transmission floor shift assembly to the vehicle body with the 4 bolts.
   Fig 1: Transmission Floor Shift Assembly Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   Do not pinch the wire harness.

2. Fully tighten the 4 bolts in the order shown in the illustration to install the transmission floor shift assembly.

   Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

3. Connect the transmission control switch connector.
   NOTE:

   Be sure to securely connect the transmission control switch connector.

4. Engage the 4 clamps to connect the wire harness to the transmission floor shift assembly.
5. Connect the shift lock control ECU connector.
   NOTE:

   Be sure to securely connect the shift lock control ECU connector.

1. Install the No. 1 console box duct with the 2 clips.

Refer to INSTALLATION [10/2015 - ]

1. Turn the transmission control shaft lever RH counterclockwise until it stops, then turn it clockwise 2 notches.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Transmission Control Shaft Lever RH
   *a	P
   *b	R
   *c	N

2. Move the shift lever to N.
3. Connect the floor shift gear shifting rod sub-assembly to the lever of the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Lever
   	Push Toward Rear of Vehicle

4. Temporarily install the nut to the lever of the transmission floor shift assembly.
5. Tighten the nut while lightly pushing the lever of the transmission floor shift assembly toward the rear of the vehicle.

   Torque: 12.8 N*m (131 kgf*cm, 9 ft.*lbf)

   NOTE:

   Do not push the lever of the transmission floor shift assembly too hard.

Refer to PROCEDURE - Step 5

Refer to INSTALLATION [10/2015 - ]

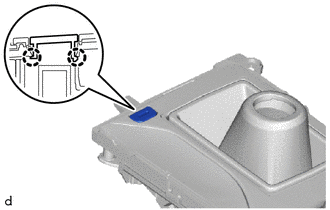

1. Engage the 2 claws to install the shift lever cap to the rear upper console panel sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  1

Refer to PROCEDURE - Step 9
