Installation [10/2015 - ]: Procedure

1. Set 4 new tail exhaust pipe baffle sub-assemblies to the tail exhaust pipe assembly and tail exhaust pipe LH.

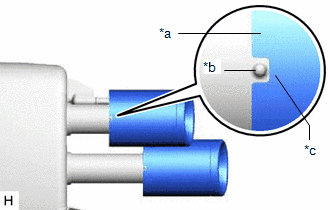

2. Align the cutout of each tail exhaust pipe baffle sub-assembly with the protrusion of the tail exhaust pipe assembly and tail exhaust pipe LH as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Plastic Hammer
   *b	Protrusion
   *c	Cutout

3. Using a plastic hammer, uniformly tap each tail exhaust pipe baffle sub-assembly onto the tail exhaust pipe assembly and tail exhaust pipe LH.
4. Check that the cutout of each tail exhaust pipe baffle sub-assembly is aligned with the protrusion on the bottom of the tail exhaust pipe assembly and tail exhaust pipe LH as shown in the illustration.

   HINT:

   Adjust the tail exhaust pipe baffle sub-assemblies if necessary.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Tail Exhaust Pipe Baffle Sub-assembly Edge
   *b	Protrusion
   *c	Cutout

1. Connect the tail exhaust pipe LH to the 3 exhaust pipe supports.
   NOTE:

   Protect the rear bumper assembly using protection material such as a piece of cloth to avoid damage by the tail exhaust pipe baffle sub-assemblies.

1. Connect the tail exhaust pipe assembly to the 3 exhaust pipe supports.
   NOTE:

   Protect the rear bumper assembly using protection material such as a piece of cloth to avoid damage by the tail exhaust pipe baffle sub-assemblies.

1. Using a vernier caliper, measure the free length of the compression springs.

   Free Length of Compression Spring

   Standard Length	Minimum Free Length
   40 mm (1.57 in.)	38.5 mm (1.52 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the free length is less than the minimum, replace the compression spring.

2. Temporarily install 2 new exhaust pipe gaskets to the front exhaust pipe assembly (TWC: Rear Catalyst) for tail exhaust pipe assembly and tail exhaust pipe LH side.
3. Using a plastic hammer and wooden block, tap in each exhaust pipe gasket until its surface is flush with the front exhaust pipe assembly (TWC: Rear Catalyst).
   NOTE:

   • Be sure to install the exhaust pipe gaskets in the correct direction.
   • Do not reuse the exhaust pipe gaskets.
   • Do not damage the exhaust pipe gaskets.
   • Do not push in the exhaust pipe gaskets by using the exhaust pipes when connecting them.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front Exhaust Pipe Assembly (TWC: Rear Catalyst)
   *2	Exhaust Pipe Gasket
   *a	Wooden Block

4. Install 2 new exhaust pipe gaskets to the front exhaust pipe assembly (TWC: Rear Catalyst) for exhaust manifold sub-assembly LH (TWC: Front Catalyst) and exhaust manifold sub-assembly RH (TWC: Front Catalyst) side.
5. Connect the front exhaust pipe assembly (TWC: Rear Catalyst) with 4 new nuts and 4 new bolts.

   Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

6. Install the front exhaust pipe assembly (TWC: Rear Catalyst) to the tail exhaust pipe assembly and tail exhaust pipe LH with the 4 bolts and 4 compression springs.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Tail Exhaust Pipe Assembly or Tail Exhaust Pipe LH
   *2	Front Exhaust Pipe Assembly (TWC: Rear Catalyst)
   *3	Exhaust Pipe Gasket
   *a	Space between Flanges: 6.5 mm (0.256 in.)

   Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

   HINT:

   After installation, check that the space between the flanges of the front exhaust pipe assembly (TWC: Rear Catalyst) and tail exhaust pipe assembly and tail exhaust pipe LH is consistent front-to-rear and left-to-right.

Refer to INSTALLATION [10/2015 - ]

Refer to PROCEDURE - Step 82

Refer to PROCEDURE - Step 84

HINT:

Perform the same procedure as for the LH side.

Refer to PROCEDURE - Step 84

If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.

1. Perform "Inspection After Repair" after repairing an exhaust gas leak.

   Refer to INITIALIZATION [10/2015 - ]
