Installation [10/2015 - 05/2018]: Procedure

INSTALL POWER STEERING LINK ASSEMBLY

Install the power steering link assembly with the 2 bolts, 2 washers and 2 nuts.
Torque: 117.6 N*m (1199 kgf*cm, 87 ft.*lbf)

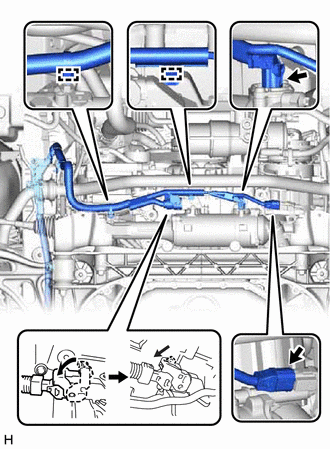

Connect the 2 wire harness clamps to the power steering link assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the 3 wire harness connectors to the power steering link assembly.
HINT:

When connecting the connector with lock lever, return the lock lever to its original position and securely push in the lock of the lock lever as shown in the illustration.

CONNECT TIE ROD ASSEMBLY LH
1. Connect the tie rod assembly LH to the steering knuckle with the nut.
  Torque: 65 N*m (663 kgf*cm, 48 ft.*lbf)

  NOTE:
  Prevent oil from adhering to the threaded and tapered parts.
2. Install a new clip.
CONNECT TIE ROD ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.

INSTALL STEERING SLIDING YOKE WITH SHAFT SUB-ASSEMBLY

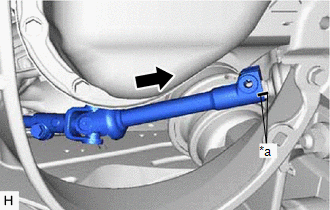

Align the matchmarks on the steering sliding yoke with shaft sub-assembly with the matchmarks on the power steering link assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Matchmark

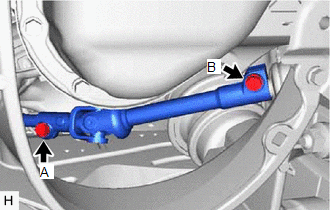

Install the bolt (B) and tighten the bolt (A).

Torque: 35.3 N*m (360 kgf*cm, 26 ft.*lbf)

INSTALL FRONT LOWER SUSPENSION MEMBER PROTECTOR
Refer to PROCEDURE - Step 68
INSTALL NO. 2 FRAME CROSSMEMBER ASSEMBLY
Refer to PROCEDURE - Step 11
INSTALL NO. 1 FRAME CROSSMEMBER ASSEMBLY
Refer to PROCEDURE - Step 12
INSTALL NO. 1 OIL COOLER BRACKET
Refer to PROCEDURE - Step 13
INSTALL OIL COOLER BRACKET
Refer to PROCEDURE - Step 14
INSTALL FRONT FENDER LINER LH
Refer to PROCEDURE - Step 70
INSTALL FRONT FENDER LINER RH
Refer to PROCEDURE - Step 71
INSTALL FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY
Refer to PROCEDURE - Step 69
INSTALL REAR ENGINE UNDER COVER LH
Refer to PROCEDURE - Step 72
INSTALL REAR ENGINE UNDER COVER RH
HINT:

Perform the same procedure as for the LH side.
INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 96
INSTALL FRONT WHEELS
Refer to PROCEDURE - Step 1
ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 2

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [10/2015 - 09/2016] , or Refer to INITIALIZATION [09/2016 - 09/2017] , or Refer to INITIALIZATION [09/2017 - ]
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
Refer to ADJUSTMENT [10/2015 - ]
ROTATION ANGLE SENSOR INITIALIZATION AND TORQUE SENSOR ZERO POINT CALIBRATION
Refer to CALIBRATION [10/2015 - ]
