Removal [10/2015 - ]: Procedure

CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Refer to PROCEDURE - Step 2 [10/2015 - 09/2017], or Refer to PROCEDURE - Step 2 [09/2017 - ]
REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
Refer to REMOVAL [10/2015 - ]
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 18 [10/2015 - 09/2017], or Refer to PROCEDURE - Step 18 [09/2017 - ]
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 19 [10/2015 - 09/2017], or Refer to PROCEDURE - Step 19 [09/2017 - ]

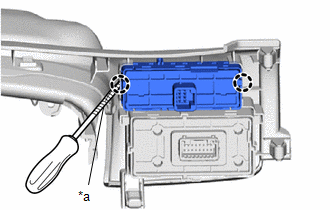

REMOVE LIGHT CONTROL RHEOSTAT (TRIP SWITCH)

Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the light control rheostat (trip switch).

*a	Protective Tape
