Removal [10/2015 - ]: Procedure

  1. REMOVE RADIO RECEIVER ASSEMBLY

    Refer to REMOVAL [10/2015 - 09/2017] , or Refer to REMOVAL [09/2017 - ]

  2. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 27 [10/2015 - 09/2017], or Refer to PROCEDURE - Step 27 [09/2017 - ]

  3. REMOVE CLOCK ASSEMBLY

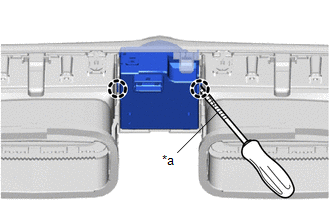

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the clock assembly.
      GTY664829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
