Removal [08/2014 - ]: Procedure

  1. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY

    Refer to PROCEDURE - Step 34

  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 35

  3. REMOVE MULTI-DISPLAY

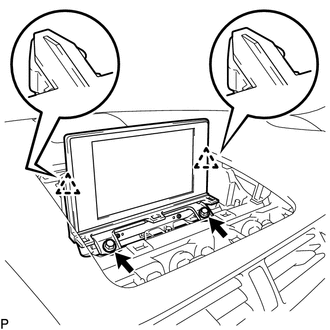

    1. Remove the 2 bolts.
      GTY463221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clips.
    3. Disconnect each connector and remove the multi-display.
