Removal [08/2014 - ]: Procedure

  1. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 16

  2. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for RH Side)

    Refer to PROCEDURE - Step 30

  3. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY
    1. Remove the 2 bolts.

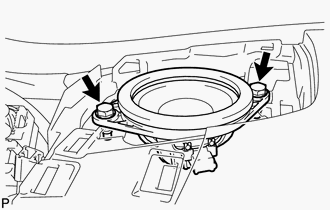

      GTY353942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the front No. 2 speaker assembly and disconnect the connector to remove the speaker.
      GTY353943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the speaker cone.

  4. REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY (w/ Front Center Speaker)

    Refer to PROCEDURE - Step 32

  5. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY (w/ Front Center Speaker)
    1. Remove the 2 bolts.
      GTY353961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Lift the front No. 4 speaker assembly and disconnect the connector to remove the speaker.
      GTY353938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the speaker cone.
