Removal [09/2013 - ]

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    All bolts, screws and nuts relevant to installing and removing the instrument panel are shown along with their alphabet code in the table below.

    Fig 1: Bolt, Screw And Nut Table
    GTY274236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE COWL TOP VENTILATOR LOUVER RH  . Refer to REMOVAL [09/2013 - ] - Step 1
  3. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work. Refer to PRECAUTION [09/2013 - ] .

  4. DISABLE AUTOAWAY/RETURN FUNCTION
    1. Disable the autoaway/return function by changing the customize parameter. Refer to CUSTOMIZE PARAMETERS [09/2013 - ] .
      NOTE:

      Record the current customize parameter setting (whether the autoaway/return function is enabled or disabled) in order to restore the current setting after finishing the operation.

      HINT:

      Performing the above operation causes the autoaway/return function to be disabled when the engine switch is turned off.

    2. Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully retract and tilt up the steering column assembly.
    3. Turn the engine switch off.
  5. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [09/2013 - ] .

  6. REMOVE INSTRUMENT SIDE PANEL LH
    Fig 2: Detaching Instrument Side Panel LH Clips
    GTY397302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply protective tape as shown in the illustration.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using molding remover D, detach the 6 clips and remove the instrument side panel LH.
  7. REMOVE INSTRUMENT PANEL ORNAMENT
    Fig 3: Detaching Instrument Panel Ornament Clips
    GTY414261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply protective tape as shown in the illustration.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using molding remover B, detach the 4 clips and remove the instrument panel ornament.
    3. Disconnect the connector.
  8. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    Fig 4: Removing Switch Base Hole Cover
    GTY404285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, detach the claw and remove the switch base hole cover from the No. 1 instrument panel safety pad sub-assembly.

      HINT:

      Tape the screwdriver tip before use.

      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Remove the bolt.
      Fig 5: Identifying No. 1 Instrument Panel Safety Pad Sub-Assembly Fasteners
      GTY406542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the screw <C>.
    4. Detach the 5 clips and claw and remove the No. 1 instrument panel safety pad sub-assembly.
    5. Disconnect each connector.
  9. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    Fig 6: Removing No. 1 Instrument Panel Under Cover Sub-Assembly
    GTY406543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 screws.
    2. Detach the 2 claws as shown in the illustration and remove the No. 1 instrument panel under cover sub-assembly.
    3. Detach the 2 claws and disconnect the DLC3.
    4. Disconnect each connector and each wire harness clamp.
  10. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY  . Refer to REMOVAL [09/2013 - ] - Step 9
  11. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY

    Refer to REMOVAL [09/2013 - ]

  12. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    Fig 7: Identifying No. 2 Instrument Cluster Finish Panel Sub-Assembly Clips
    GTY400213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply protective tape as shown in the illustration.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Remove the 2 clips.
    3. Detach the 2 clips and remove the No. 2 instrument cluster finish panel sub-assembly.
    4. Disconnect 2 connectors.
  13. REMOVE COMBINATION METER ASSEMBLY
    Fig 8: Identifying Combination Meter Assembly Screws And Connector Cover Claws
    GTY418318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 screws and combination meter assembly.
    2. Detach the 2 claws and open the connector cover.
    3. Disconnect the connector.
  14. REMOVE CONSOLE BOX ASSEMBLY
    1. w/o Rear Seat Entertainment System:

      Refer to REMOVAL [09/2013 - ]

    2. w/ Rear Seat Entertainment System:

      Refer to REMOVAL [09/2013 - ]

  15. REMOVE MULTI-MEDIA MODULE RECEIVER ASSEMBLY  . Refer to REMOVAL [09/2013 - ] - Step 13
  16. REMOVE INSTRUMENT SIDE PANEL RH
    Fig 9: Detaching Instrument Side Panel RH Clips
    GTY410017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply protective tape as shown in the illustration.
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using molding remover D, detach the 6 clips and remove the instrument side panel RH.
  17. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
    1. Apply protective tape as shown in the illustration.
    2. Using molding remover B, detach the 12 clips and remove the instrument cluster finish panel garnish assembly.
    3. Disconnect each connector.
      Fig 10: Detaching Instrument Cluster Finish Panel Garnish Assembly Clips
      GTY418033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape - -
  18. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    Fig 11: Detaching No. 2 Instrument Panel Under Cover Claws
    GTY117538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 4 claws and remove the No. 2 instrument panel under cover sub-assembly.
    2. Disconnect the connector.
  19. REMOVE LOWER INSTRUMENT PANEL  . Refer to REMOVAL [09/2013 - ] - Step 7
  20. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  . Refer to REMOVAL [09/2013 - ] - Step 8
  21. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
    Fig 12: Identifying Glove Compartment Door Assembly Screws
    GTY406624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 5 screws <C> and glove compartment door assembly.
    2. Disconnect each connector and each wire harness clamp.
  22. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    Fig 13: Identifying Instrument Panel Finish Panel Sub-Assembly Clips
    GTY407450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Detach the 10 clips and remove the instrument panel finish panel sub-assembly.
  23. REMOVE ACCESSORY METER ASSEMBLY  . Refer to REMOVAL [09/2013 - ] - Step 16
  24. REMOVE FRONT PILLAR GARNISH LH  . Refer to REMOVAL [09/2013 - ] - Step 11
  25. REMOVE FRONT PILLAR GARNISH RH  . Refer to REMOVAL [09/2013 - ] - Step 12
  26. REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  . Refer to REMOVAL [09/2013 - ] - Step 4
  27. REMOVE NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

    HINT:

    Use the same procedure described for the No. 1 instrument panel speaker panel.

  28. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)  . Refer to REMOVAL [09/2013 - ] - Step 5
  29. REMOVE FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure described for the LH side.

  30. REMOVE NO. 1 SPEAKER HOLE COVER  . Refer to REMOVAL [09/2013 - ] - Step 1
  31. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY  . Refer to REMOVAL [09/2013 - ] - Step 2
  32. REMOVE DCM (TELEMATICS TRANSCEIVER) (w/ Telematics Transceiver)  . Refer to REMOVAL [09/2013 - ] - Step 10
  33. REMOVE TIRE PRESSURE MONITOR RECEIVER ASSEMBLY  . Refer to REMOVAL [09/2013 - ] - Step 4
  34. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Disconnect each connector and each wire harness clamp.
    2. Detach the 2 claws and disconnect the cooler thermistor.
      Fig 14: Identifying Wire Harness Connectors & Clamps
      GTY407449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 8 bolts <A> and 2 bolts <E> and nut <F>.
    4. Remove the 5 bolts and nut.
    5. Detach the 5 clips and remove the instrument panel safety pad sub-assembly.

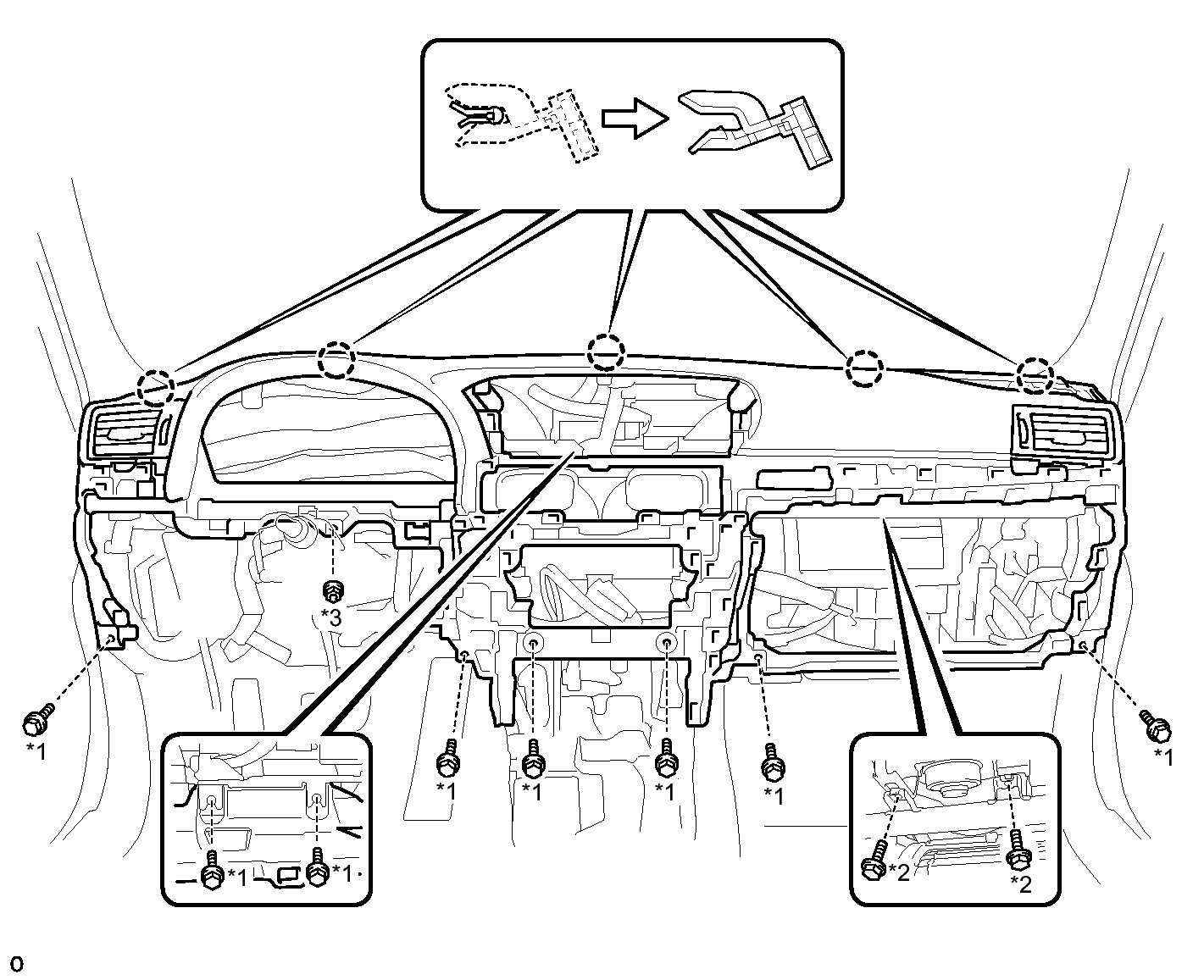

      Fig 15: Identifying Instrument Panel Safety Pad Sub-Assembly Bolts, Nuts And Clips
      GTY403236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Bolt <A> *2 Bolt <B>
      *3 Nut <F> - -
  35. REMOVE NO. 3 INSTRUMENT PANEL STAY
    1. Detach the 5 claws and remove the 5 No. 3 instrument panel stays.
      Fig 16: Identifying No. 3 Instrument Panel Stay Claws
      GTY407448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
