Removal [09/2013 - ]

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION [09/2013 - ] .

    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work. Refer to PRECAUTION [09/2013 - ] .

  2. REMOVE COWL TOP VENTILATOR LOUVER RH  . Refer to REMOVAL [09/2013 - ] - Step 2
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [09/2013 - ] .

  4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH  . Refer to REMOVAL [09/2013 - ] - Step 2
  5. REMOVE INSTRUMENT SIDE PANEL RH  . Refer to REMOVAL [09/2013 - ] - Step 6
  6. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL [09/2013 - ] - Step 18
  7. REMOVE LOWER INSTRUMENT PANEL
    1. Put protective tape around the lower instrument panel.

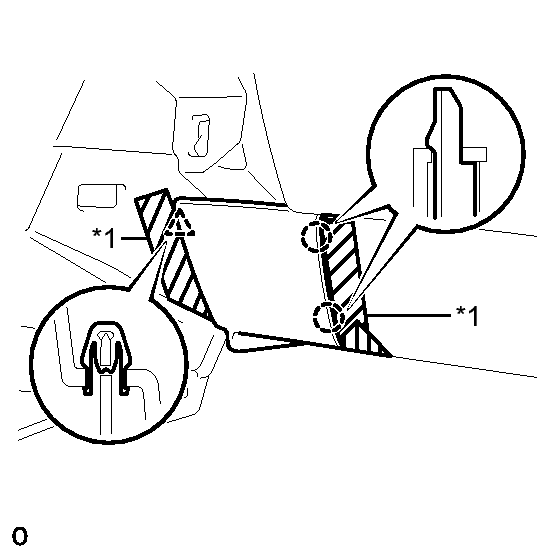

      Fig 1: Identifying Lower Instrument Panel Clip And Claws
      GTY409470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Using a screwdriver, detach the clip and 2 claws to remove the lower instrument panel.
  8. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
    1. Check that the engine switch is off.
    2. Check that the cable is disconnected from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Remove the 3 bolts.

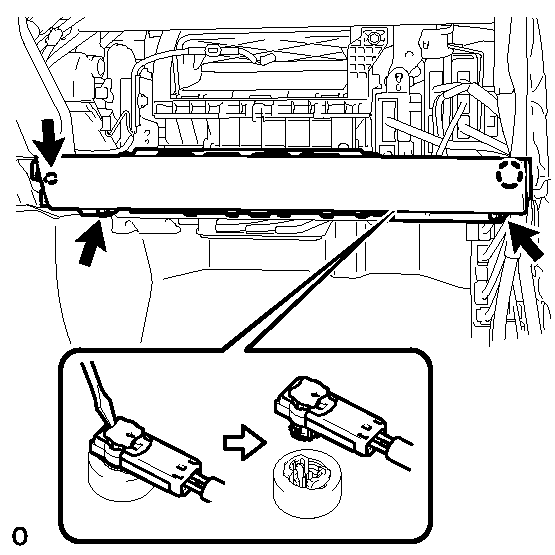

      Fig 2: Removing Front Passenger Side Knee Airbag Assembly
      GTY406226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the claw to remove the front passenger side knee airbag assembly.
    5. Using a screwdriver release the airbag connector lock.
    6. Using a screwdriver, disconnect the airbag connector.
      NOTE:

      When disconnecting airbag connector, take care not to damage the airbag wire harness.
