Removal [08/2015 - 10/2017]: Procedure

for 2GR-FSE: Refer to PROCEDURE - Step 10 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 10 [10/2016 - 10/2017]

for 8AR-FTS: Refer to PROCEDURE - Step 11 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 11 [10/2016 - 09/2020]

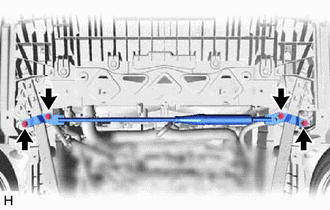

1. Remove the 4 bolts and suspension tower damper from the front upper No. 2 suspension member.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not extend or compress the damper.
