Removal [08/2015 - 10/2016]: Procedure

Refer to PROCEDURE - Step 12

Refer to PROCEDURE - Step 13

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

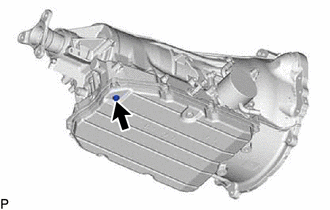

1. Remove the drain plug and gasket, and drain the automatic transmission fluid.
2. Install a new gasket and the drain plug.

   Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

1. Remove the 9 bolts, automatic transmission oil pan sub-assembly and automatic transmission oil pan gasket.
   NOTE:

   Some fluid will remain in the automatic transmission oil pan sub-assembly. Remove all of the bolts, and carefully remove the automatic transmission oil pan sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 3 transmission oil cleaner magnets from the automatic transmission oil pan sub-assembly.
3. Examine the particles in the automatic transmission oil pan sub-assembly.
   1. Use the removed transmission oil cleaner magnets to collect any steel chips.

      Examine the chips and particles in the automatic transmission oil pan sub-assembly and on the transmission oil cleaner magnets to determine what type of wear might be found in the automatic transmission assembly.

      Result

      Steel (magnetic):

      Bearing, gear and clutch plate wear

      Brass (non-magnetic):

      Bushing wear

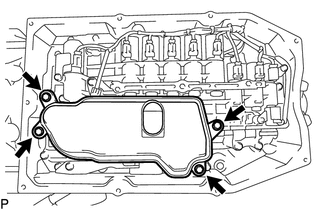

1. Remove the 4 bolts and valve body oil strainer assembly from the transmission valve body assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Be careful as some fluid will come out of the valve body oil strainer assembly.

2. Remove the O-ring from the valve body oil strainer assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   O-ring

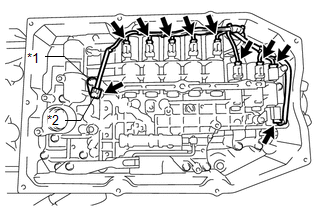

1. Remove the bolt and lock plate, and disconnect the ATF temperature sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Lock Plate
   *2	ATF Temperature Sensor

2. Disconnect the 9 connectors.

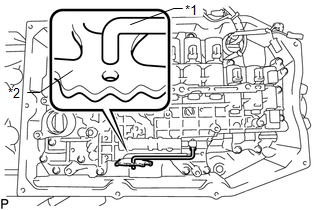

3. Remove the bolt, detent spring cover and detent spring.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Detent Spring Cover
   *2	Detent Spring

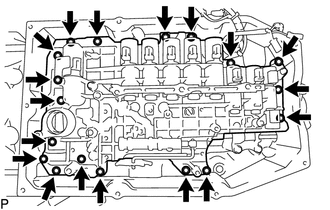

4. Remove the 18 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

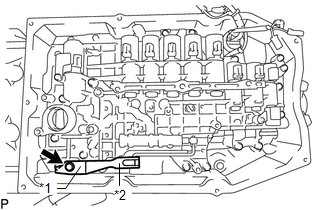

5. Disconnect the manual valve connecting rod from the manual valve lever sub-assembly, and then remove the transmission valve body assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Manual Valve Connecting Rod
   *2	Manual Valve Lever Sub-assembly
