Installation [09/2020 - ]: Procedure

1. Set 2 new tail exhaust pipe baffle sub-assemblies to the tail exhaust pipe assembly and tail exhaust pipe LH.
2. Align the cutout of each tail exhaust pipe baffle sub-assembly with the protrusion of the tail exhaust pipe assembly and tail exhaust pipe LH as shown in the illustration.

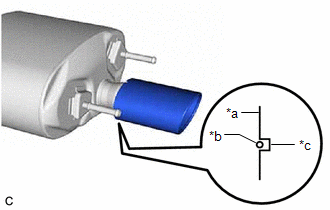

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Plastic Hammer
   *b	Protrusion
   *c	Cutout

3. Using a plastic hammer, uniformly tap each tail exhaust pipe baffle sub-assembly onto the tail exhaust pipe assembly and tail exhaust pipe LH.
4. Check that the cutout of each tail exhaust pipe baffle sub-assembly is aligned with the protrusion on the bottom of the tail exhaust pipe assembly and tail exhaust pipe LH as shown in the illustration.

   HINT:

   Adjust the tail exhaust pipe baffle sub-assembly if necessary.

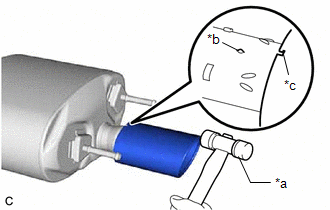

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Tail Exhaust Pipe Baffle Sub-assembly Edge
   *b	Protrusion
   *c	Cutout

1. Install the tail exhaust pipe LH to the 3 exhaust pipe supports.
   NOTE:

   Protect the rear bumper assembly using protection material such as a piece of cloth to avoid damage by the tail exhaust pipe LH.

1. Install the tail exhaust pipe assembly to the 3 exhaust pipe supports.
   NOTE:

   Protect the rear bumper assembly using protection material such as a piece of cloth to avoid damage by the tail exhaust pipe assembly.

1. Using a vernier caliper, measure the free length of the compression springs.

   Standard Length	40 mm (1.57 in.)
   Minimum Free Length	38.5 mm (1.52 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the free length is less than the minimum, replace the compression spring.

2. Temporarily install 2 new exhaust pipe gaskets to the front exhaust pipe assembly for tail exhaust pipe assembly and tail exhaust pipe LH side.
3. Using a plastic hammer and wooden block, tap in each exhaust pipe gasket until its surface is flush with the front exhaust pipe assembly.
   NOTE:

   • Be sure to install the gaskets in the correct direction.
   • Do not reuse the exhaust pipe gaskets.
   • Do not damage the exhaust pipe gaskets.
   • Do not push in the exhaust pipe gaskets by using the front exhaust pipe assembly when connecting it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front Exhaust Pipe Assembly
   *2	Exhaust Pipe Gasket
   *a	Wooden Block

4. Install a new exhaust pipe gasket to the front exhaust pipe assembly for exhaust manifold converter sub-assembly (TWC: Front and Rear Catalyst) side.
5. Connect the front exhaust pipe assembly with 2 new nuts and 2 new bolts.

   Torque: 39 N.m (398 kgf/cm, 29 ft.lbf)

6. Install the front exhaust pipe assembly to the tail exhaust pipe assembly and tail exhaust pipe LH with the 4 bolts and 4 compression springs.

   Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

   HINT:

   After installation, check that the space between the flanges of the front exhaust pipe assembly and tail exhaust pipe assembly and tail exhaust pipe LH are consistent front-to-rear and left-to-right.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Tail Exhaust Pipe Assembly and Tail Exhaust Pipe LH
   *2	Front Exhaust Pipe Assembly
   *3	Exhaust Pipe Gasket
   *a	Space between Flanges: 6.5 mm (0.256 in.)

Refer to PROCEDURE - Step 73 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 73 [11/2021 - ]

Refer to PROCEDURE - Step 74 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 74 [11/2021 - ]

Refer to PROCEDURE - Step 75 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 75 [11/2021 - ]

If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.

1. Perform Inspection After Repair after repairing an exhaust gas leak.

   Refer to INITIALIZATION [09/2019 - ]
