Removal [04/2013 - 08/2015]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [04/2013 - 08/2015]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015]

  3. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [04/2013 - 10/2017]

  4. REMOVE ENGINE UNDER COVER

    Refer to PROCEDURE - Step 10

  5. REMOVE FRONT SUSPENSION MEMBER BRACE

    Refer to PROCEDURE - Step 13

  6. REMOVE NO. 2 ENGINE UNDER COVER (w/ No. 2 Engine Under Cover)

    Refer to PROCEDURE - Step 14

  7. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 4

  8. DRAIN AUTOMATIC TRANSMISSION FLUID

    See step  3

  9. REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to REMOVAL [04/2013 - ]

  10. REMOVE STARTER ASSEMBLY

    Refer to REMOVAL [04/2013 - 10/2017]

  11. REMOVE FLYWHEEL HOUSING SIDE COVER
    1. Remove the flywheel housing side cover from the engine assembly.
      GTY294267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE DRIVE PLATE AND TORQUE CONVERTER SETTING BOLT
    1. Using SST, hold the crankshaft pulley.
      • SST: 09213-7001109330-00021
        1. 09213-70020
      GTY464035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 drive plate and torque converter assembly setting bolts.
      GTY291116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      There will be one black colored bolt.

  13. REMOVE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Move the shift lever to N.
    2. Remove the nut and separate the floor shift gear shifting rod sub-assembly from the lever of the transmission floor shift assembly.
      GTY462357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lever
    3. Remove the clip, pin and floor shift gear shifting rod sub-assembly from the transmission control shaft lever RH.
      GTY469357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY
    1. Support the automatic transmission assembly with a transmission jack.
      NOTE:
      • In order to protect the automatic transmission oil pan sub-assembly, place attachments on the transmission jack.
      • Make sure that the attachments and the automatic transmission oil pan sub-assembly are centered on the transmission jack.
      • To prevent the automatic transmission oil pan sub-assembly from deforming, do not place any attachments under the automatic transmission oil pan sub-assembly of the automatic transmission assembly.
      GTY469011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR ENGINE MOUNTING MEMBER

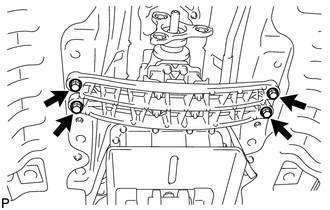

    1. Remove the 4 bolts and separate the rear engine mounting member from the body.
      GTY359614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

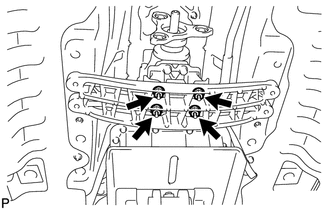

    2. Remove the 4 nuts and rear engine mounting member from the automatic transmission assembly.
      GTY359828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. DISCONNECT NO. 2 EARTH WIRE

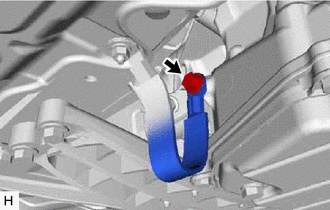

    1. Remove the bolt and disconnect the No. 2 earth wire from the automatic transmission assembly.
      GTY457370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. DISCONNECT WIRE HARNESS AND CONNECTOR
    1. Tilt down the automatic transmission assembly.
      NOTE:

      Make sure that the cooling fan and fan shroud do not contact the engine assembly when tilting the automatic transmission assembly.

      GTY458347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

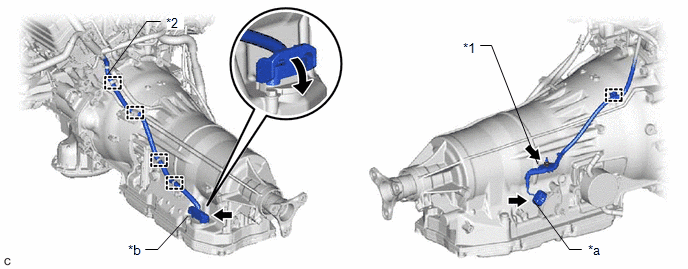

    2. Disconnect the park/neutral position switch assembly connector.
      GTY456668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Nut *2 Breather Plug Sub-assembly
      *a Park/neutral Position Switch Assembly Connector *b Transmission Wire Connector
    3. Disconnect the transmission wire connector.

      HINT:

      Disengage the claw, pull down the lever, and then disconnect the transmission wire connector.

    4. Disconnect the 4 clamps and remove the nut and wire harness from the automatic transmission assembly.
  18. DISCONNECT WATER BY-PASS HOSE

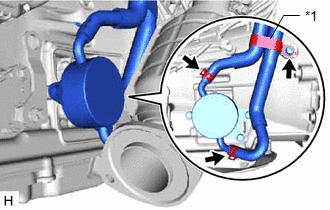

    1. Remove the bolt and hose clamp from the automatic transmission assembly.
      GTY464581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Hose Clamp
    2. Slide the 2 clips and disconnect the water by-pass hose and No. 2 water by-pass hose from the transmission oil cooler.

      HINT:

      Use a container to catch any coolant which flows out of the water by-pass hose and No. 2 water by-pass hose.

  19. REMOVE AUTOMATIC TRANSMISSION ASSEMBLY

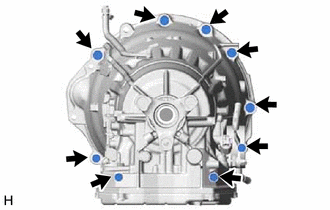

    1. Remove the 9 bolts and automatic transmission assembly from the engine assembly.
      NOTE:
      • Secure the automatic transmission assembly to the transmission jack using a belt, etc. to prevent it from falling.
      • To prevent damage to the knock pins, do not pry between the automatic transmission assembly and engine assembly.
      GTY460717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REAR ENGINE MOUNTING BRACKET
    1. Remove the 4 bolts and rear engine mounting bracket from the automatic transmission assembly.
      GTY457372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE TORQUE CONVERTER ASSEMBLY
    1. Put matchmarks on the case and the torque converter assembly.
      GTY458099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the torque converter assembly from the automatic transmission assembly.
  22. INSPECT TORQUE CONVERTER ASSEMBLY

    Refer to INSPECTION [04/2013 - 08/2015]
