Removal [08/2015 - 10/2016]: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Refer to PRECAUTION [08/2015 - 10/2016]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
Refer to INITIALIZATION [08/2015 - 10/2016]
- REMOVE ENGINE UNDER COVER
Refer to PROCEDURE - Step 11
- REMOVE FRONT SUSPENSION MEMBER BRACE
Refer to PROCEDURE - Step 12
- REMOVE NO. 2 ENGINE UNDER COVER
Refer to PROCEDURE - Step 13

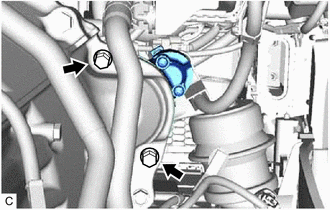

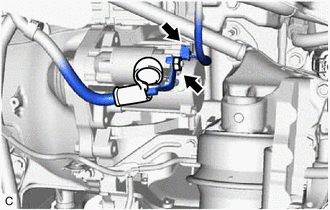

- REMOVE STARTER ASSEMBLY
