Adjustment [11/2021 - ]: Procedure
WARNING: This page is about a different car, the 2024 Lexus IS 500, 2023 Lexus IS 500, and 2022 Lexus IS 500. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
Refer to REMOVAL [11/2021 - ]
- REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
Refer to PROCEDURE - Step 3
- ADJUST SHIFT LEVER POSITION
- Move the shift lever to N.

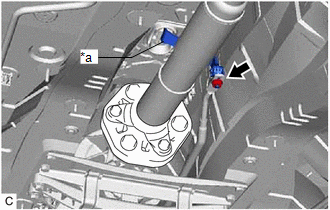

- Remove the nut and disconnect the floor shift gear shifting rod sub-assembly from the lever of the transmission floor shift assembly.
*a Lever - Turn the transmission control shaft lever RH counterclockwise until it stops, then turn it clockwise 2 notches.
*1 Transmission Control Shaft Lever RH *a P *b R *c N - Connect the floor shift gear shifting rod sub-assembly to the lever of the transmission floor shift assembly.

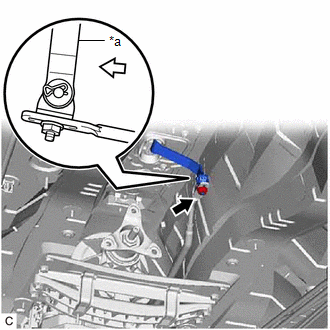

*a Lever Rear of the vehicle - Temporarily install the nut to the lever of the transmission floor shift assembly.
- Tighten the nut while lightly pushing the lever of the transmission floor shift assembly toward the rear of the vehicle.
Torque: 12.8 N.m (131 kgf/cm, 9 ft.lbf)
NOTE:Do not push the lever of the transmission floor shift assembly too hard.
- INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR
Refer to PROCEDURE - Step 5
- INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
Refer to INSTALLATION [11/2021 - ]
- INSPECT SHIFT LEVER POSITION
See step 1
- INSPECT FOR EXHAUST GAS LEAK
Refer to PROCEDURE - Step 9
