Removal [08/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus IS 300, 2023 Lexus IS 300, 2022 Lexus IS 300, 2021 Lexus IS 300, and 2020 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE OIL

    See step  1 [08/2015 - 09/2020], or see step  1 [09/2020 - 11/2021], or see step  1 [11/2021 - 09/2022], or see step  1 [09/2022 - ]

  2. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY

    Refer to REMOVAL [08/2015 - ]

  3. REMOVE COOLER COMPRESSOR ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. DISCONNECT NO. 5 ENGINE WIRE
    1. Disconnect the 2 No. 5 engine wire connectors.
      GTY633088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE OIL COOLER ASSEMBLY
    1. Slide the 2 clips and disconnect the No. 4 water by-pass hose and No. 5 water by-pass hose from the oil cooler assembly.
      GTY641963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 4 Water By-pass Hose
      *2 No. 5 Water By-pass Hose

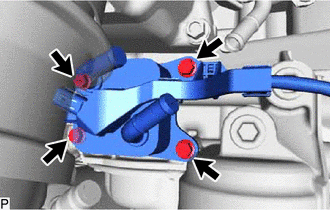

    2. Remove the 4 bolts and oil cooler assembly from the stiffening crankcase assembly.
      GTY633089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 O-rings from the stiffening crankcase assembly.
  6. REMOVE NO. 5 ENGINE WIRE
    1. Detach the 2 clamps to remove the No. 5 engine wire from the oil cooler assembly.
      GTY677031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
