On-Vehicle Inspection [04/2013 - 08/2015]: Procedure
- INSPECT ENGINE COOLANT
Refer to REPLACEMENT [04/2013 - 08/2015]
- INSPECT ENGINE OIL
- CHECK BATTERY CONDITION
- CHECK SPARK PLUG
- INSPECT AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
- Remove the air cleaner filter element sub-assembly.
- Visually check that the air cleaner filter element sub-assembly is not excessively damaged or oily.
HINT:
- If necessary, replace the air cleaner filter element sub-assembly.
- If there is any dirt or clogs in the air cleaner filter element sub-assembly, clean it with compressed air.
- If any dirt or clogs remain even after cleaning the air cleaner filter element sub-assembly with compressed air, replace it.
- Install the air cleaner filter element sub-assembly.
- INSPECT V-RIBBED BELT TENSIONER ASSEMBLY
- Remove the V-ribbed belt.
Refer to REMOVAL [04/2013 - 08/2015]
- Check that nothing is caught in the V-ribbed belt tensioner assembly by turning it clockwise and counterclockwise.
HINT:
If a malfunction exists, replace the V-ribbed belt tensioner assembly.
- Install the V-ribbed belt.
Refer to INSTALLATION [04/2013 - 08/2015]
- Remove the V-ribbed belt.
- INSPECT VALVE LASH ADJUSTER ASSEMBLY NOISE
- Rev up the engine several times. Check that the engine does not emit unusual noises.
- If unusual noises occur, warm up the engine and idle it for 30 minutes or more, then perform the preceding inspection.
HINT:
If any defects or problems are found during the preceding inspection, perform valve lash adjuster assembly inspection.
Refer to PROCEDURE - Step 2
- INSPECT IGNITION TIMING
- Warm up and stop the engine.
HINT:
A warmed up engine should have an engine coolant temperature of over 80°C (176°F), an engine oil temperature of 60°C (140°F), and the engine speed should be stabilized.
- When using the Techstream:
Check the ignition timing.
- Connect the Techstream to the DLC3.
- Start the engine and run it at idle.
- Turn the Techstream on.
- Enter the following menus: Powertrain / Engine / Data List / IGN Advance.
Powertrain > Engine > Data List
Tester Display IGN Advance Standard Ignition Timing
7 to 17° BTDC at idle
NOTE:- Check the ignition timing with the cooling fans off.
- Turn off all electrical systems and the A/C.
- When checking the ignition timing, the transmission should be in neutral or park.
- Check that the ignition timing advances immediately when the engine speed is increased.
- Enter the following menus: Powertrain / Engine / Active Test / Connect the TC and TE1 / ON.
Powertrain > Engine > Active Test
Active Test Display Connect the TC and TE1 Data List Display IGN Advance - Monitor IGN Advance.
- Perform the Active Test.
Standard Ignition Timing
8 to 12° BTDC at idle
NOTE:When checking the ignition timing, the transmission should be in neutral or park.
- When not using the Techstream:
- Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
*a DLC3 - SST: 09843-18040
NOTE:- Confirm the terminals before connecting them. Connecting the wrong terminals may result in damage to electrical components.
- Check the ignition timing with the cooling fans off.
- Turn off all the electrical systems and the A/C.
- When checking the ignition timing, the transmission should be in neutral or park.
- Remove the V-bank cover sub-assembly.
See step 3
- Connect the timing light probe to the ignition coil wire for the No. 1 cylinder.NOTE:
Use a timing light that detects primary signals.
- Start the engine and run it at idle.
- Check the ignition timing at idle.
Standard Ignition Timing
8 to 12° BTDC at idle
NOTE:When checking the ignition timing, the transmission should be in neutral or park.
HINT:
Run the engine at 1000 to 1300 rpm for 5 seconds, and then check that the engine rpm returns to engine idle speed.
- Disconnect terminals 13 (TC) and 4 (CG) of the DLC3.
- Check the ignition timing at idle.
Standard Ignition Timing
7 to 17° BTDC at idle
- Confirm that the ignition timing advances immediately when the engine idle speed is increased.
- Remove the timing light probe from the engine.
- Install the V-bank cover sub-assembly.
See step 104
- Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.
- Warm up and stop the engine.
- INSPECT ENGINE IDLE SPEED
- Warm up and stop the engine.
HINT:
A warmed up engine should have an engine coolant temperature of over 80°C (176°F), an engine oil temperature of 60°C (140°F), and the engine idle speed should be stabilized.
- When using the Techstream:
- Connect the Techstream to the DLC3.
- Start the engine and run it at idle.
- Turn the Techstream on.
- Enter the following menus: Powertrain / Engine / Data List / Engine Speed.
Powertrain > Engine > Data List
Tester Display Engine Speed - Read the value displayed on the tester.
Standard Idle Speed
650 to 750 rpm
NOTE:- Check the idle speed with the cooling fans off.
- Turn off all the electrical systems and the A/C.
- When checking the engine idle speed, the transmission should be in neutral or park.
- When not using the Techstream:
- Using SST, connect a tachometer probe to terminal 9 (TAC) of the DLC3.
*a DLC3 NOTE:Be sure to connect the tachometer to the correct terminal. Connecting the wrong terminals can cause damage to electrical components.
- SST: 09843-18030
- Turn the engine switch ON (IG).
- Inspect the engine idle speed.
Standard Idle Speed
650 to 750 rpm
NOTE:- Check the engine idle speed with the cooling fans off.
- Turn off all the electrical systems and the A/C.
- When checking the engine idle speed, the transmission should be in neutral or park.
- Turn the engine switch off.
- Disconnect the tachometer probe from terminal 9 (TAC) of the DLC3.
- Using SST, connect a tachometer probe to terminal 9 (TAC) of the DLC3.
- Warm up and stop the engine.
- INSPECT COMPRESSION NOTE:
Keep the intake manifold and spark plug holes free of foreign matter when measuring the compression pressure.
- Warm up and stop the engine.
HINT:
A warmed up engine should have an engine coolant temperature of over 80°C (176°F), an engine oil temperature of 60°C (140°F), and the engine idle speed should be stabilized.
- Check for DTCs.
- Remove the 6 spark plugs.
Refer to PROCEDURE - Step 3
- Remove the cool air intake duct seal.
Refer to PROCEDURE - Step 1
- Remove the inlet No. 1 air cleaner.
See step 20
- Disconnect the throttle with motor body connector.

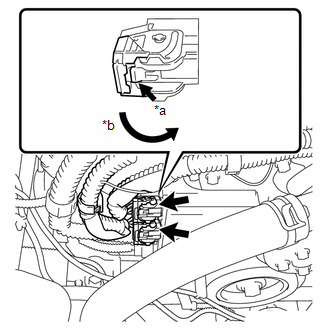

- Disconnect the 2 injector driver connectors as shown in the illustration.
*a Release *b Move - Check the cylinder compression pressure.
- Insert a compression gauge into the spark plug hole.
- Fully open the throttle.
- While cranking the engine, measure the compression pressure.
Standard Compression Pressure
1400 kPa (14.3 kgf/cm2 , 203 psi)
Minimum Compression Pressure
980 kPa (10.0 kgf/cm2 , 142 psi)
Pressure Difference between each Cylinder
100 kPa (1.0 kgf/cm2 , 15 psi) or less
NOTE:- Always use a fully charged battery to obtain an engine speed of 250 rpm or more.
- Inspect the other cylinders in the same way.
- Measure the compression pressure as quickly as possible.
- If the cylinder compression pressure is low, pour a small amount of engine oil into the cylinder through the spark plug hole and inspect it again.
HINT:
- If adding engine oil increases the compression pressure, the piston rings and/or cylinder bore may be worn or damaged.
- If the compression pressure stays low, a valve may be stuck or seated improperly, or there may be leaks in the cylinder head gasket.

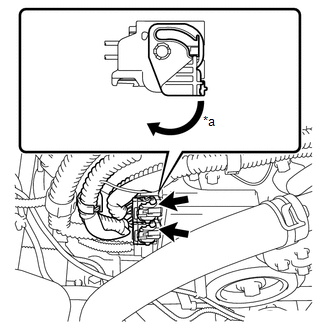

- Connect the 2 injector driver connectors as shown in the illustration.
*a Move - Connect the throttle with motor body connector.
- Install the inlet No. 1 air cleaner.
See step 74
- Install the cool air intake duct seal.
Refer to PROCEDURE - Step 3
- Install the 6 spark plugs.
Refer to PROCEDURE - Step 1
- Clear the DTCs.
Refer to DTC CHECK / CLEAR [04/2013 - 08/2015]
NOTE:After the inspection, clear the DTCs, check for DTCs again and make sure the normal system code is output.
- Warm up and stop the engine.
- INSPECT CO/HC
HINT:
This check determines whether the idle CO/HC complies with regulations.
- Start the engine.
- Keep the engine speed at 2500 rpm for approximately 180 seconds.
- Insert a CO/HC meter testing probe at least 40 cm (1.31 ft.) into the tailpipe during idle.
- Immediately check the CO/HC concentration during idle and when the engine is running at 2500 rpm.
HINT:
When performing the 2 mode (with the engine idling/running at 2500 rpm) test, the measurement procedures are determined by applicable local regulations.
If the CO/HC concentration does not comply with the regulations, perform troubleshooting in the order given below.
- Check for DTCs.
- See the following table for possible causes, then inspect and correct the applicable causes if necessary.
CO HC Problem Cause Normal High Rough idle - Faulty ignition:
- Incorrect valve timing
- Fouled, shorted or improperly gapped spark plugs
- Incorrect valve clearance (valve lash adjuster assembly)
- Leaks in intake or exhaust valves
- Leaks in cylinders
Low High Rough idle
(Fluctuating HC reading)- Vacuum leaks:
- PCV hoses
- Intake manifold
- Throttle with motor body assembly
- Lean mixture causing misfire
High High Rough idle
(Black smoke from exhaust)- Restricted air cleaner filter element sub-assembly
- Plugged PCV valve
- Faulty SFI system:
- Fuel pressure regulator assembly
- Engine coolant temperature sensor
- Mass air flow meter sub-assembly
- ECM
- Fuel injector assemblies
- Throttle position sensor (built in throttle with motor body assembly)
- Faulty ignition:
