Removal [04/2013 - 10/2017]: Procedure

  1. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [04/2013 - 10/2016] , or refer to PROCEDURE - Step 1 [10/2016 - 09/2020]

  2. REMOVE NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 20 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 20 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 19 [10/2016 - 10/2017]

  3. DRAIN ENGINE OIL

    See step  1[04/2013 - 08/2015], or see step  1[08/2015 - 10/2017]

  4. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Disconnect the engine oil pressure switch assembly connector.

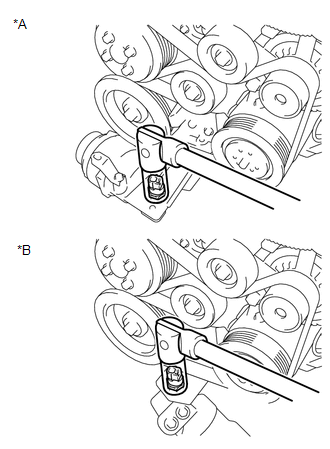

    2. Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.
      GTY467474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A For 2WD
      *B For AWD
