Removal [04/2013 - 10/2017]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 3 [08/2015 - 10/2016] , or refer to PROCEDURE - Step 3 [10/2016 - 10/2017]

  2. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
    1. Slide the clip and disconnect the ventilation hose assembly from the PCV valve (ventilation valve sub-assembly).

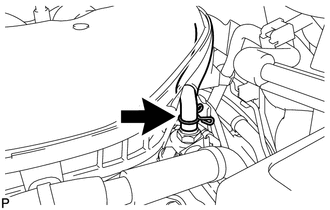

      GTY418173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a 19 mm deep socket wrench, remove the PCV valve (ventilation valve sub-assembly) from the cylinder head cover sub-assembly LH.

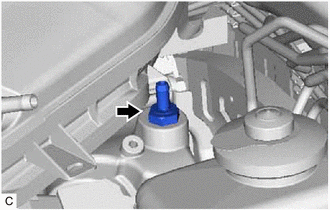

      GTY460312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
