Installation [09/2020 - ]: Procedure

  1. INSTALL FRONT AXLE HUB SUB-ASSEMBLY (for 2WD)
    1. Install the front axle hub sub-assembly to the steering knuckle with the 4 bolts.

      Torque: 68.6 N.m (700 kgf/cm, 51 ft.lbf)

  2. INSTALL FRONT AXLE HUB SUB-ASSEMBLY (for AWD)
    1. Install the front axle hub sub-assembly to the steering knuckle with the 4 bolts.

      Torque: 68.6 N.m (700 kgf/cm, 51 ft.lbf)

      GTY470663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
      NOTE:

      Align the matchmarks on the front drive shaft assembly and front axle hub sub-assembly

  3. INSTALL FRONT DISC (for AWD)

    Refer to PROCEDURE - Step 1 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 1 [11/2021 - ]

  4. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY (for AWD)
    1. Install the front disc brake caliper assembly to the steering knuckle with the 2 bolts.

      Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

      NOTE:

      Do not twist the front flexible hose when installing the front disc brake caliper assembly.

  5. TEMPORARILY INSTALL FRONT AXLE SHAFT NUT (for AWD)
    1. Clean the threaded parts on the front drive shaft assembly and a new front axle shaft nut using non-residue solvent.
      NOTE:
      • Be sure to perform this work even when using a new front drive shaft assembly.
      • Keep the threaded parts free of oil and foreign matter.
    2. Using a 30 mm socket wrench, while applying the brakes, temporarily install the front axle shaft nut.

      Torque: 294 N.m (2998 kgf/cm, 217 ft.lbf)

      NOTE:

      Stake the front axle shaft nut after inspecting for looseness and runout in the following steps.

      HINT:

      Keep depressing the brake pedal to prevent the front drive shaft assembly from rotating.

  6. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY (for AWD)

    See step  5

  7. REMOVE FRONT DISC (for AWD)

    Refer to PROCEDURE - Step 7

  8. INSPECT FRONT AXLE HUB BEARING LOOSENESS

    See step  4

  9. INSPECT FRONT AXLE HUB RUNOUT

    See step  5

  10. INSTALL FRONT DISC

    Refer to PROCEDURE - Step 1 [09/2020 - 11/2021] , or refer to PROCEDURE - Step 1 [11/2021 - ]

  11. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY
    1. Install the front disc brake caliper assembly to the steering knuckle with the 2 bolts.

      Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

      NOTE:

      Do not twist the front flexible hose when installing the front disc brake caliper assembly.

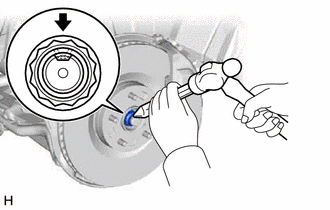

  12. INSTALL FRONT AXLE SHAFT NUT (for AWD)
    1. Using a chisel and hammer, stake the front axle shaft nut.
      GTY670758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. CONNECT SKID CONTROL SENSOR WIRE (for 2WD)
    1. Connect the skid control sensor wire connector to the front axle hub sub-assembly.
      NOTE:

      Do not twist the skid control sensor wire when installing it.

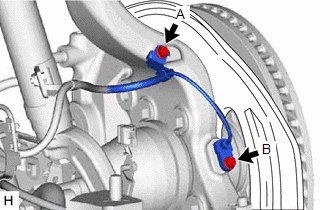

  14. INSTALL FRONT SPEED SENSOR (for AWD)
    1. Install the front speed sensor to the steering knuckle with the 2 bolts.

      Bolt (A)

      Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

      Bolt (B)

      Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

      GTY627322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not twist the front speed sensor when installing it.

  15. INSTALL FRONT WHEEL

    Refer to PROCEDURE - Step 1 [09/2020 - 10/2023] , or refer to INSTALLATION [10/2023 - ]

  16. CHECK FOR SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE [09/2020 - 11/2021] , or refer to TEST MODE PROCEDURE [11/2021 - ]
