Removal [10/2016 - 09/2020]: Procedure

  1. REMOVE FRONT BUMPER ASSEMBLY

    for Standard: Refer to REMOVAL [10/2016 - 09/2020]

    for Sport Package: Refer to REMOVAL [10/2016 - 09/2020]

  2. REMOVE UPPER FRONT FENDER PROTECTOR
    1. Disengage the 3 clips to remove the upper front fender protector.

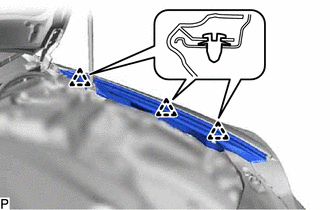

      GTY638875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE HEADLIGHT ASSEMBLY
    1. Disconnect the 2 connectors.

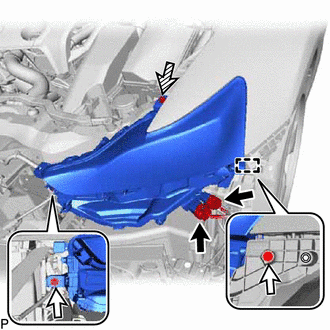

      GTY673402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Screw
    2. Remove the 2 bolts and screw.
    3. Disengage the guide to remove the headlight assembly.
