Removal [04/2013 - 09/2018]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE TELEPHONE MICROPHONE ASSEMBLY

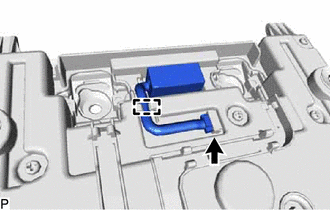

    1. Disconnect the connector.
      GTY469723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

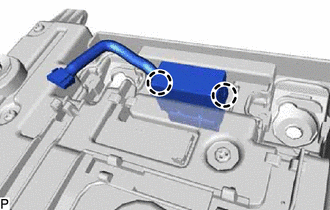

    3. Disengage the 2 claws and remove the telephone microphone assembly.
      GTY461650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
