Removal [04/2013 - ]: Procedure

  1. REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to REMOVAL [04/2013 - 10/2016] , or refer to REMOVAL [10/2016 - ]

  2. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 5

  3. REMOVE TILT AND TELESCOPIC SWITCH (for Power Tilt and Power Telescopic Steering Column)

    Refer to PROCEDURE - Step 6

  4. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY

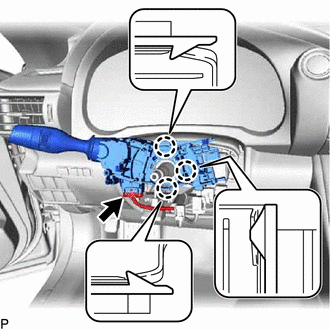

    1. Disconnect the connector.
      GTY467916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, disengage the 3 claws to remove the headlight dimmer switch assembly.
