Removal [04/2013 - ]: Procedure

See step  2 [04/2013 - 08/2015], or see step  2 [08/2015 - 10/2016], or see step  2 [10/2016 - 10/2017], or see step  2 [10/2017 - 09/2020], or see step  2 [09/2020 - 11/2021], or see step  2 [11/2021 - ]

Refer to REMOVAL [04/2013 - ]

See step  3 [04/2013 - 10/2016], or see step  3 [10/2016 - 11/2021], or see step  3 [11/2021 - ]

1. Remove the 3 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 2 claws and remove the steering column cover (lower).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

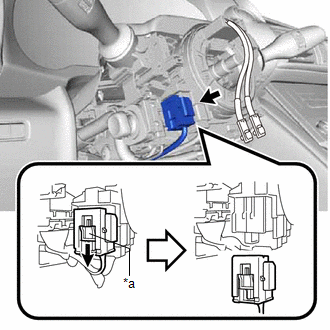

1. Slide the slider to release the lock, and then disconnect the yellow airbag connector from the spiral cable with sensor sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Slider

   NOTE:

   When disconnecting any airbag connector, take care not to damage the airbag wire harness.

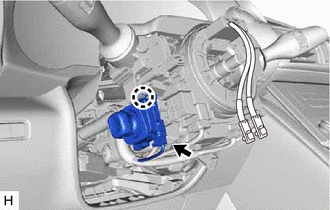

2. Disconnect the tilt and telescopic connector from the tilt and telescopic switch.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disengage the claw and pull out the tilt and telescopic switch.
