Removal [04/2013 - 10/2016]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [04/2013 - 08/2015] , or refer to PRECAUTION [08/2015 - 10/2016]

  2. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column)

    Refer to PROCEDURE - Step 2 [04/2013 - 08/2015] , or refer to PROCEDURE - Step 2 [08/2015 - 10/2016]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [04/2013 - 06/2014] , or refer to INITIALIZATION [06/2014 - 08/2015] , or refer to INITIALIZATION [08/2015 - 10/2016]

  4. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 9

  5. DISCONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10

  6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  7. REMOVE METER HOOD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  8. REMOVE COMBINATION METER ASSEMBLY

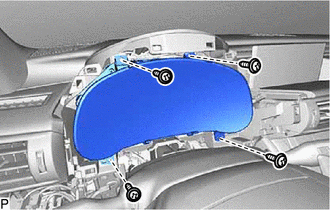

    1. Remove the 4 screws.
      GTY468070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for Standard:

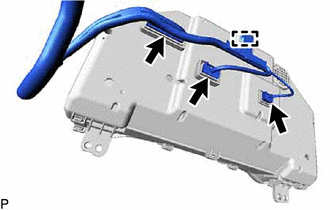

      1. Disengage the clamp.
        GTY468071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect each connector to remove the combination meter assembly.
    3. for Sport Package:

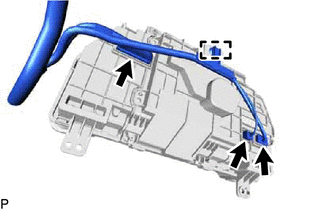

      1. Disengage the clamp.
        GTY456461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect each connector to remove the combination meter assembly.
