REAR SEAT ASSEMBLY (for Ottoman): Disassembly: Disassembly

WARNING:

Wear protective gloves. Sharp areas on the parts may injure your hands.

REMOVE REAR SEAT CUSHION SPRING ASSEMBLY LH
1. Remove the hog rings and seat cushion spring.

  Fig 1: Identifying Seat Cushion Spring & Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT CUSHION COVER SUB-ASSEMBLY LH
1. Remove the hog rings and seat cushion cover from the seat cushion pad.

  Fig 2: Identifying Rear Seat Cushion Cover, Seat Cushion Pad & Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT SHOULDER BELT GUIDE LH
1. Remove the 3 screws and shoulder belt guide.

  Fig 3: Identifying Shoulder Belt Guide Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT HEADREST ASSEMBLY LH
1. Remove the 2 pins and headrest.

  Fig 4: Identifying Rear Seat Headrest Assembly LH & Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT HEADREST SUPPORT LH
1. Detach the 4 claws and remove the 2 headrest supports.

  Fig 5: Identifying Claws And Headrest Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY LH

Fig 6: Identifying Rear No. 1 Seat Headrest Adjuster Sub-Assembly, Wire Harness Clamp, Connectors, Bolts & Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Detach the wire harness clamp and disconnect the 2 connectors.
2. Remove the 2 bolts.
3. Detach the 2 claws and remove the headrest adjuster.
REMOVE POSITION CONTROL ECU LH

Fig 7: Identifying Position Control ECU, Connectors & Nuts LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the 2 connectors.
2. Remove the 2 nuts and position control ECU.
REMOVE REAR SEAT CLIMATE CONTROL ECU LH

Fig 8: Identifying Rear Seat Climate Control ECU, Connectors & Nuts LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the 2 connectors.
2. Remove the 2 nuts and seat climate control ECU.
REMOVE REAR SEAT COVER CAP LH
1. Detach the 5 claws and remove the cover cap.

  Fig 9: Identifying Rear Seat Cover Cap LH & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT LOCK BASE LH
1. Remove the 3 screws and lock base.

  Fig 10: Identifying Rear Seat Lock Base LH & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEATBACK COVER WITH PAD LH

Fig 11: Identifying Rear Seatback Cover With Pad, Seatback Cover Bracket & Nut LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the nut and detach the seatback cover bracket.
2. Disconnect the connector.
3. Detach the hooks and remove the hog rings and seatback cover with pad from the seatback spring.
REMOVE REAR SEATBACK COVER SUB-ASSEMBLY LH

Fig 12: Identifying Hog Rings, Seatback Pad & Seatback Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the hog rings and seatback cover from the seatback pad.
REMOVE REAR SEATBACK CLIMATE CONTROL BLOWER LH

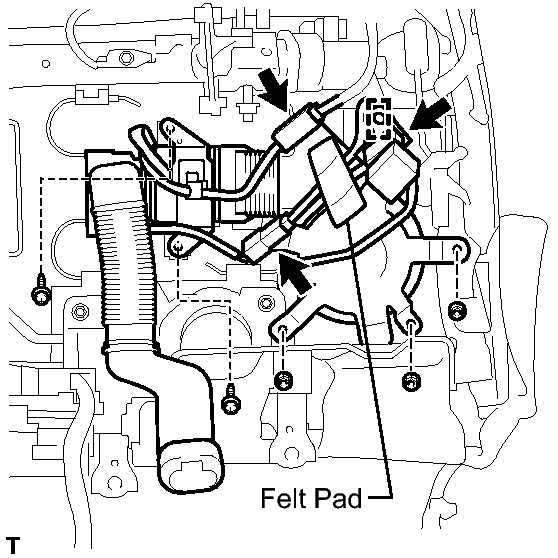

Fig 13: Identifying Seatback Climate Control Blower, Felt Pad, Connectors, Wire Harness Clamp, Nuts & Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the felt pad.
2. Disconnect the 2 connectors and detach the wire harness clamps.
3. Remove the 3 nuts.
4. Remove the 2 screws and seatback climate blower.
REMOVE REAR SEAT WIRE LH

Fig 14: Identifying Rear Seat Wire, Connectors & Wire Harness Clamps LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the connectors.
2. Detach the wire harness clamps and remove the seat wire.
REMOVE REAR SEAT INNER BELT ASSEMBLY LH . Refer to REMOVAL - Step 3
REMOVE REAR SEAT BELT INNER ANCHOR BRACKET ASSEMBLY LH
1. Remove the nut and anchor bracket.

  Fig 15: Identifying Anchor Bracket Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEAT CLIMATE CONTROL CONTROLLER LH
1. Remove the cushion pad.

  Fig 16: Identifying Cushion Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Detach the 2 wire harness clamps and disconnect the 2 connectors.

  Fig 17: Identifying Wire Harness Clamps & Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 screws.

  Fig 18: Identifying Screws & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Detach the 2 claws and remove the climate control controller.
REMOVE AIR FILTER LH

Fig 19: Identifying Air Filter Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Detach the 2 claws and remove the air filter.
REMOVE SEAT CLIMATE CONTROL BLOWER LH
1. Disconnect the connector.

  Fig 20: Identifying Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 nuts and climate control blower.

  Fig 21: Identifying Climate Blower Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT CUSHION SPRING ASSEMBLY RH

Fig 22: Identifying Clip Remover, Clip, Hooks, Hog Rings & Seat Cushion Springs
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a clip remover, remove the clip.
2. Detach the hooks.
3. Remove the hog rings and seat cushion spring.
REMOVE REAR SEAT NO. 2 CUSHION PAD
1. Remove the 2 nuts and cushion pad.

  Fig 23: Identifying Cushion Pad & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT NO. 1 CUSHION PAD
1. Remove the 2 nuts and cushion pad.

  Fig 24: Identifying Cushion Pad & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT CUSHION COVER SUB-ASSEMBLY RH

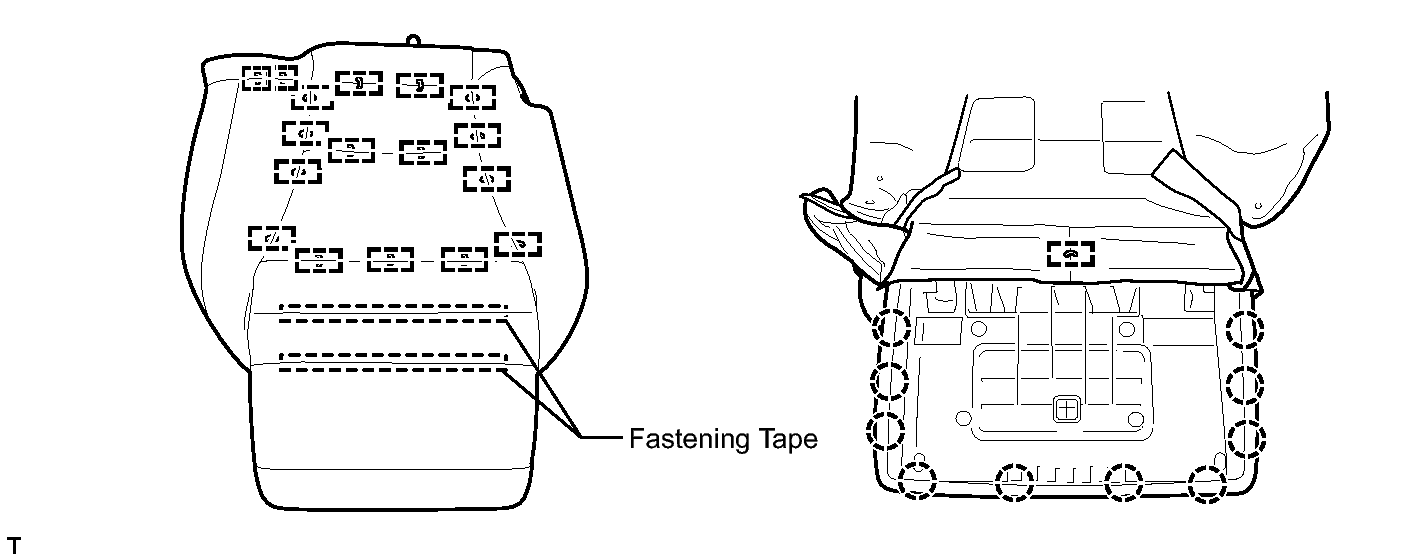

Fig 25: Identifying Hog Rings, Fastening Tape, Claws & Seat Cushion Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the hog rings and detach the 2 pieces of fastening tape.
2. Detach the claws and remove the seat cushion cover.
REMOVE REAR SEAT SHOULDER BELT GUIDE RH
HINT:

Use the same procedures described for the LH side.
REMOVE REAR SEAT HEADREST ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
REMOVE REAR SEAT HEADREST SUPPORT RH
HINT:

Use the same procedures described for the LH side.
REMOVE REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
REMOVE POSITION CONTROL ECU RH
1. Remove the 2 nuts and position control ECU.

  Fig 26: Identifying Position Control ECU & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 2 connectors.

  Fig 27: Identifying Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT CLIMATE CONTROL ECU RH
HINT:

Use the same procedures described for the LH side.
REMOVE REAR SEAT COVER CAP RH
HINT:

Use the same procedures described for the LH side.
REMOVE REAR SEAT LOCK BASE RH
HINT:

Use the same procedures described for the LH side.
REMOVE REAR SEATBACK CLIMATE CONTROL BLOWER RH
HINT:

Use the same procedures described for the LH side.
REMOVE REAR SEATBACK COVER WITH PAD RH

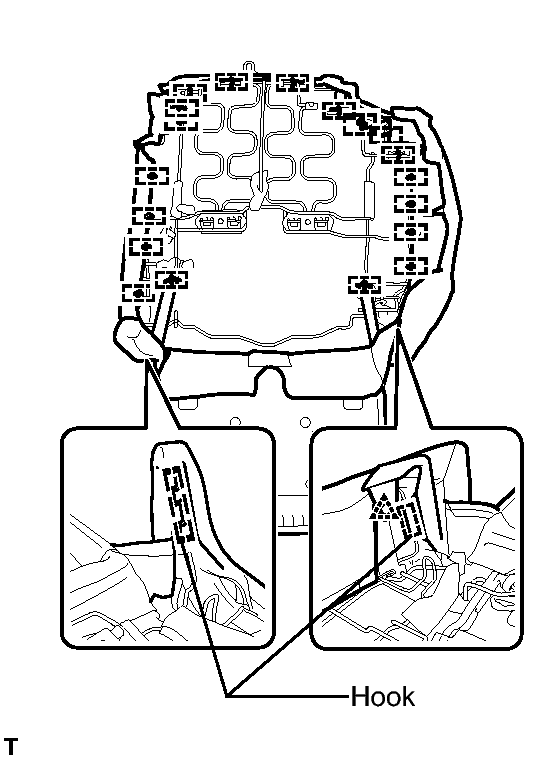

Fig 28: Identifying Seatback Cover Bracket, Connector, Hooks, Hog Rings, Seatback Cover With Pad & Seatback Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the nut and detach the seatback cover bracket.
2. Disconnect the connector.
3. Detach the hooks and remove the hog rings and seatback cover with pad from the seatback spring.
REMOVE REAR SEATBACK COVER SUB-ASSEMBLY RH

Fig 29: Identifying Seatback Pad, Seatback Cover & Hog Rings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the hog rings and seatback cover from the seatback pad.
REMOVE REAR SEAT WIRE RH

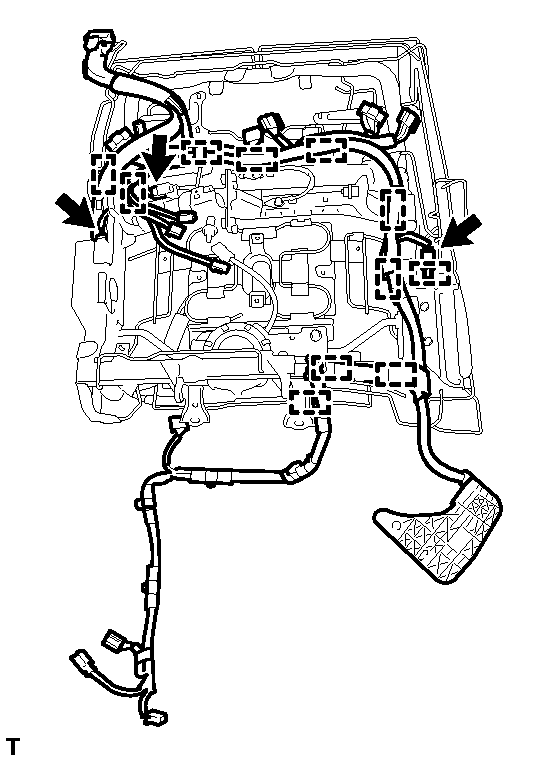

Fig 30: Identifying Rear Seat Wire, Wire Harness Clamps & Connectors
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the connectors.
2. Detach the wire harness clamps and remove the seat wire.
REMOVE SUB SEATBACK PLATE SUB-ASSEMBLY
1. Detach the 2 claws and disconnect the 2 air hoses.

  Fig 31: Identifying Claws, Upper Seatback Plate & Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Detach the 2 clamps and remove the upper part of the seatback plate.
3. Detach the 2 hose clamps and disconnect the air hose.

  Fig 32: Identifying Hose Clamps, Air Hose, Clamps & Lower Seatback Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Detach the 4 clamps and remove the lower part of the seatback plate.
REMOVE REAR SEAT INNER BELT ASSEMBLY RH . Refer to REMOVAL - Step 2
REMOVE REAR CENTER SEAT INNER BELT ASSEMBLY (w/ Center Seat) . Refer to REMOVAL - Step 2
REMOVE REAR SEAT BELT INNER ANCHOR BRACKET ASSEMBLY RH
1. Remove the nut and anchor bracket.

  Fig 33: Identifying Anchor Bracket And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEAT CLIMATE CONTROL CONTROLLER RH
HINT:

Use the same procedures described for the LH side.
REMOVE AIR FILTER RH
HINT:

Use the same procedures described for the LH side.
REMOVE SEAT CLIMATE CONTROL BLOWER RH
HINT:

Use the same procedures described for the LH side.
REMOVE CENTER SEAT CUSHION COVER SUB-ASSEMBLY (w/ Center Seat)

Fig 34: Identifying Fastening Tape, Hog Rings & Center Seat Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the hog rings.
2. Detach the fastening tape and remove the center seat cushion cover.
REMOVE REAR CENTER SEAT CUSHION PAD (w/ Center Seat)
1. Remove the center seat cushion pad from the center seat cushion frame.
REMOVE REAR CENTER SEAT HEADREST ASSEMBLY (w/ Center Seat)
1. Remove the 2 bolts and center seat headrest.

  Fig 35: Locating Center Headrest Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT ARMREST HOLE COVER (w/ Center Seat)
1. Detach the 2 clips and remove the cover.

  Fig 36: Identifying Armrest Hole Cover & Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER SEATBACK FRAME SUB-ASSEMBLY (w/ Center Seat)
1. Detach the wire harness clamp.

  Fig 37: Identifying Harness Clamp, Nuts, Center Seatback Frame & Center Armrest
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts and center seatback frame from the center armrest.
REMOVE TELEVISION VOLUME AND SWITCH ASSEMBLY (w/ Center Seat)
1. Remove the television volume and switch.
REMOVE REAR NO. 1 SEAT CENTER ARMREST PANEL (w/ Center Seat)
1. Detach the 17 claws and remove the No. 2 seat center armrest panel with No. 1 seat center armrest panel.

  Fig 38: Identifying Rear Seat Center Armrest Panel, Claws, Connectors & Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 2 connectors.
3. Remove the 3 screws and No. 1 center seat armrest panel.

  Fig 39: Locating No. 1 Center Armrest Panel Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR POWER SEAT MODULE SWITCH (w/ Center Seat)
1. Remove the 4 screws and rear power seat module switch.

  Fig 40: Identifying Rear Power Seat Module Switch & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY (w/ Center Seat)
1. Remove the 2 screws and cup holder.

  Fig 41: Removing Cup Holder Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEAT VIBRATOR SWITCH (w/ Center Seat)
1. Detach the wire harness clamps and disconnect the connectors.

  Fig 42: Identifying Wire Harness Clamps, Connectors & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 screws.
3. Remove the 8 screws and center armrest box with center armrest door.

  Fig 43: Identifying Center Armrest Box, Center Armrest Door & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a screwdriver, detach the claw and remove the wire harness clamp.

  Fig 44: Identifying Claw & Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Detach the 2 claws and remove the plate.

  Fig 45: Identifying Plate & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Pull up the wire harness and remove the switch.

  Fig 46: Identifying Wire Harness & Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEADPHONE TERMINAL (w/ Center Seat) . Refer to REMOVAL - Step 18
REMOVE COURTESY LIGHT SWITCH ASSEMBLY (w/ Center Seat)
1. Remove the 2 screws and courtesy light switch.

  Fig 47: Identifying Courtesy Light Switch & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CURTAIN SWITCH ASSEMBLY (w/ Center Seat)

Fig 48: Identifying Curtain Switch, Screw & Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 2 screws and curtain switch.
2. Disconnect the connector and remove the No. 2 switch wire.
REMOVE SWITCH WIRE (w/ Center Seat)
1. Detach the 2 wire harness clamps and remove the switch wire.

  Fig 49: Identifying Wire Harness Clamps & Switch Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
