Installation

AXLE AND DIFFERENTIAL: REAR AXLE SHAFT: INSTALLATION

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. INSTALL REAR AXLE SHAFT OIL SEAL LH

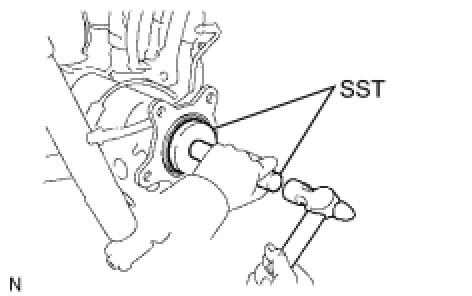

(a) Using SST and a hammer, install a new axle shaft oil seal.





SST : 09950-60020

09951-00770

SST : 09950-70010

09951-07150

NOTICE:
Do not allow foreign matter, etc. to contact the axle shaft housing hole.

2. INSTALL REAR AXLE SHAFT WITH PARKING BRAKE PLATE LH

(a) Install a new O-ring to the axle housing.

(b) Install the rear axle shaft with parking brake plate with the 4 nuts.

Torque : 60 Nm (612 kgf-cm, 44 ft-lbf)

3. INSTALL PARKING BRAKE ASSEMBLY

(a) Install the parking brake assembly Reassembly.

4. INSTALL REAR SPEED SENSOR LH Installation

5. INSTALL REAR FLEXIBLE HOSE LH Installation

6. FILL RESERVOIR WITH BRAKE FLUID

7. BLEED BRAKE LINE Service and Repair

8. CHECK BRAKE FLUID LEVEL IN RESERVOIR Testing and Inspection

9. INSPECT FOR BRAKE FLUID LEAK

10. INSTALL REAR WHEEL

Torque : 112 Nm (1137 kgf-cm, 82 ft-lbf)

11. INSPECT PARKING BRAKE PEDAL TRAVEL Adjustments

12. CHECK SPEED SENSOR SIGNAL

(a) Check the speed sensor signal Test Mode Procedure.
