Replacement
AXLE AND DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER OIL SEAL: REPLACEMENT
1. REMOVE FRONT DIFFERENTIAL CARRIER ASSEMBLY
(a) Remove the front differential carrier assembly Removal.
2. REMOVE FRONT DRIVE PINION COMPANION FLANGE NUT
(a) Using SST and a hammer, loosen the staked part of the nut.
SST : 09930-00010
Using SST to hold the companion flange, remove the nut.
SST : 09330-00021
09330-00030
Text in Illustration

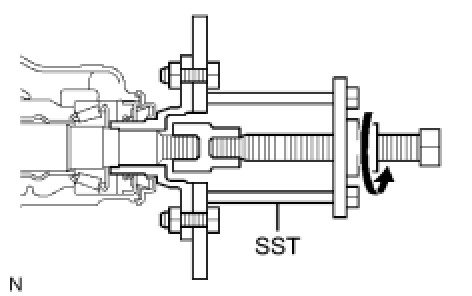

3. REMOVE FRONT DRIVE PINION COMPANION FLANGE SUB-ASSEMBLY
(a) Using SST, remove the companion flange.
SST : 09950-30012
09951-03010
09953-03010
09954-03010
09955-03030
09956-03020
NOTICE:
Before using SST (center bolt), apply hypoid gear oil to its threads and tip.
4. REMOVE FRONT DIFFERENTIAL CARRIER OIL SEAL
(a) Using SST, remove the oil seal.
SST : 09308-10010
Text in Illustration
5. REMOVE FRONT DIFFERENTIAL DRIVE PINION OIL SLINGER
6. REMOVE FRONT DRIVE PINION REAR TAPERED ROLLER BEARING
(a) Using SST, remove the roller bearing (inner).
SST : 09556-22010
(b) Using SST, tap out the roller bearing (outer).
SST : 09308-00010
7. REMOVE FRONT DIFFERENTIAL OIL STORAGE RING
(a) Using a screwdriver and hammer, tap out the oil storage ring.

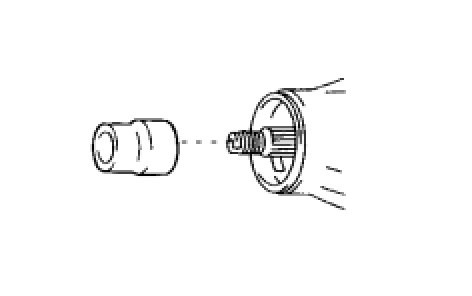

8. REMOVE FRONT DIFFERENTIAL DRIVE PINION BEARING SPACER
(a) Remove the bearing spacer.
9. INSTALL FRONT DIFFERENTIAL DRIVE PINION BEARING SPACER
(a) Install a new bearing spacer.
HINT
Install the spacer so that it is facing in the correct direction.
10. INSTALL FRONT DIFFERENTIAL OIL STORAGE RING
(a) Using a brass bar and hammer, tap in a new oil storage ring.
NOTICE:
Be careful not to damage the oil storage ring.
11. INSTALL FRONT DRIVE PINION REAR TAPERED ROLLER BEARING
(a) Using SST and a hammer, install the roller bearing (outer).
SST : 09316-60011
09316-00011
09316-00021
(b) Install the roller bearing (inner).
12. INSTALL FRONT DIFFERENTIAL DRIVE PINION OIL SLINGER
13. INSTALL FRONT DIFFERENTIAL CARRIER OIL SEAL
(a) Apply MP grease to the lip of a new oil seal.
(b) Using SST and a hammer, tap in the oil seal.
SST : 09554-22010
Oil seal depth:
3.9 to 4.8 mm (0.154 to 0.188 in.)
Text in Illustration

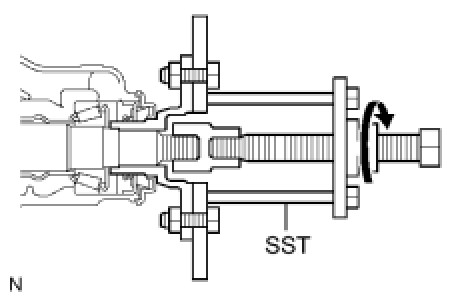

14. INSTALL FRONT DRIVE PINION COMPANION FLANGE SUB-ASSEMBLY
(a) Using SST, install the companion flange.
SST : 09950-30012
09951-03010
09953-03010
09954-03010
09955-03030
09956-03020
NOTICE:
Before using SST (center bolt), apply hypoid gear oil to its threads and tip.
(b) Coat the threads of a new nut with LSD oil.
(c) Using SST to hold the companion flange in place, tighten the nut to the correct torque.
SST : 09330-00021
09330-00030
Torque : 370 Nm (3773 kgf-cm, 273 ft-lbf) or less
15. INSPECT DIFFERENTIAL DRIVE PINION PRELOAD
(a) Using a torque wrench, measure the preload.

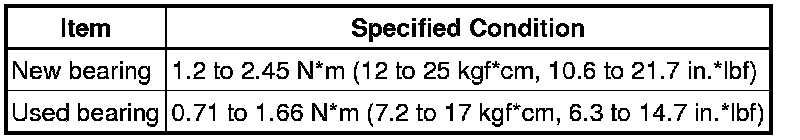

Standard Preload (at Starting):
If the result is not as specified, adjust the preload.

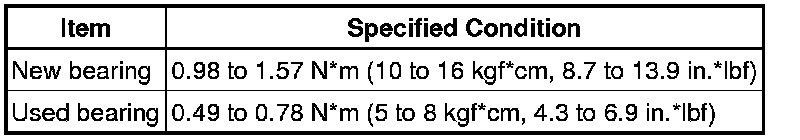

Standard Total Preload (at Starting):
16. STAKE FRONT DRIVE PINION COMPANION FLANGE NUT
(a) Using a chisel and hammer, stake the nut.
17. INSTALL FRONT DIFFERENTIAL CARRIER ASSEMBLY
(a) Install the front differential carrier assembly Installation.
